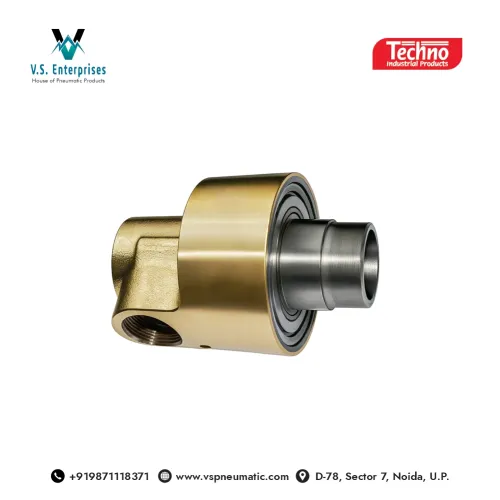

VS Enterprises supplies Techno 2 way rotor couplings from Noida for machines that must feed air or fluid into a spinning shaft.
Overview: The Techno 2-Way Rotary Joint is a pneumatic joint that allows for a connection between a stationary source of compressed air and a rotary mechanism without the problem of the air hose twisting. This pneumatic joint contains two separate air paths for feeding separate pneumatic lines while rotating.
Benefits: It supplies air continuously to rotating elements, prevents hose twisting and winding up, increases the reliability of the rotary pneumatic systems, decreases hose wear and tear, and ensures smooth operation of automation mechanisms and machines.
Typical applications: rotary tables, chucks, drums and spindles needing air or coolant.
Figures come from the Techno catalogue and are confirmed for your size at quotation.
|
Parameter |
Specification |
|
Product Type |
2-Way Rotor Coupling |
|
Series |
Techno HD2 |
|
Material |
Brass Body |
|
Flow Paths |
2-Way |
|
Thread Size |
1/4" to 2" |
|
Working Pressure |
0–18 kg/cm² |
|
Temperature Range |
0–180°C |
|
Suitable Media |
Air, Oil, Water & Steam |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
No matching products from other brands are currently available.
A few practical details to help you frame your next engineering project.
A 2-way rotary joint carries two separate air lines through a single rotating connection.
It is used in pneumatic machinery with a rotary motion, automatic control systems and indexing machines.
The ability to rotate continuously with constant air flow through both channels.
