Who it is for: machines where the speed of pneumatic cylinders needs to be regulated.
It is helpful to your process: controls airflow to provide adjustable cylinder speed and reduce sudden movement.
Problems it fixes: cylinders moving too quickly, slamming at the end of the stroke, product damage and uneven pneumatic movement.
Compatible with: uFlow flow control fittings, pneumatic cylinders, valves, tubing and other pneumatic components.
Figures come from the uFlow catalogue and are confirmed for your size at quotation.
|
Parameter |
Details |
|
Product type |

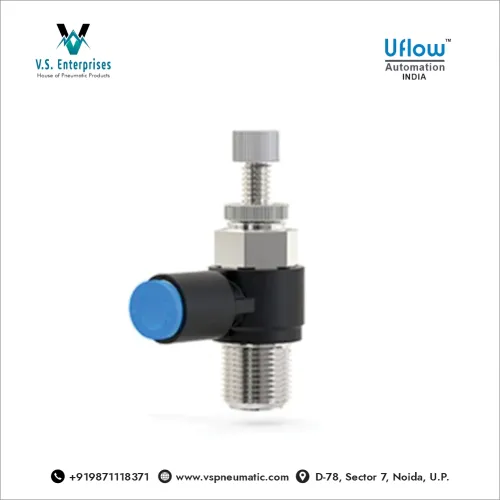

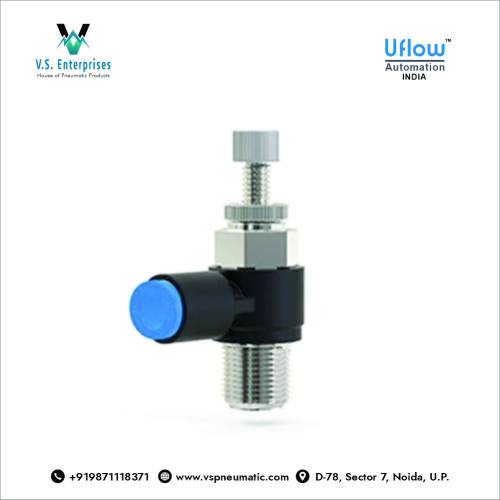

uFlow pneumatic flow control valve |
|
Operation |
Adjustable airflow control |
|
Control type |
In-line flow control |
|
Primary use |
Pneumatic cylinder speed control |
|
Port size |
Available in different port sizes |
|
Working pressure |
As per uFlow product specifications |
|
Airflow direction |
Depends on valve design |
|
Speed adjustment |
Adjustable as required |
|
Suitable applications |
Automation, packaging, fixtures and pneumatic machinery |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
A few practical details to help you frame your next engineering project.
Used to control airflow and speed of operation of pneumatic cylinders.
Yes. The speed of operation can be regulated by controlling the airflow.
Meter-in controls the incoming air and meter-out controls the outgoing air.
