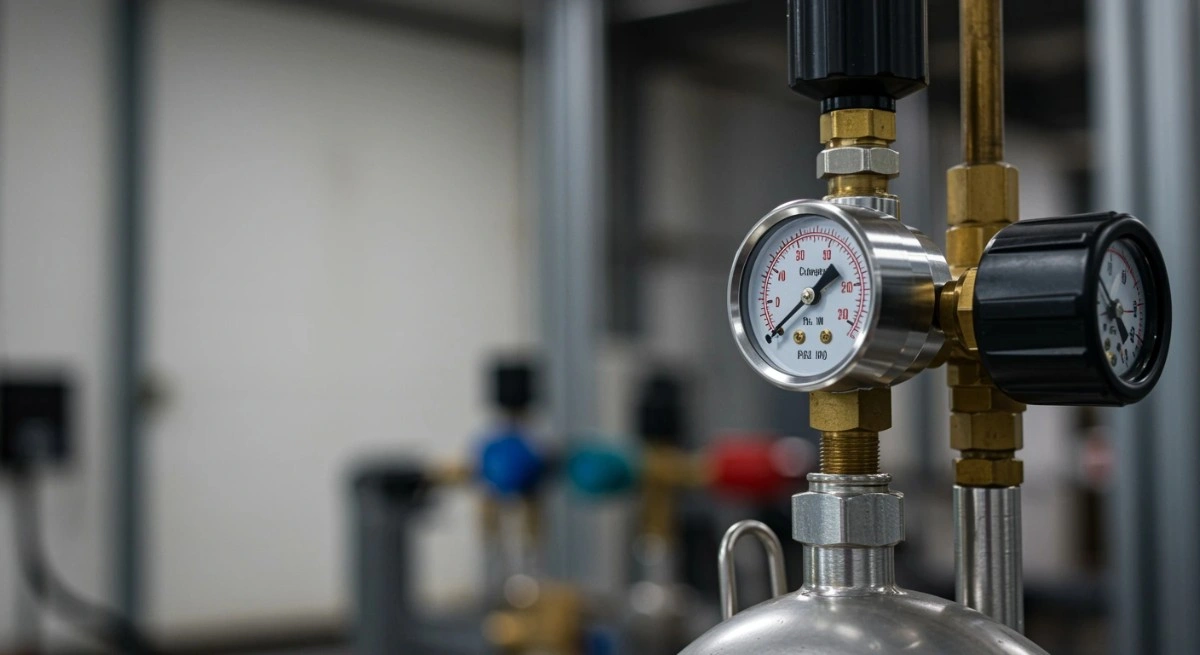

Air Regulators- Types, Working Principle and Applications

If you are considering investing in an air regulator, then you need to know everything about them. Read on to know more.

What Is an Air Regulator?

An air regulator is a mechanical device that is set to regulate and maintain a given pressure output of compressed air irrespective of the changes in the source pressure or variation in downstream demand.

Air in industrial systems is typically expelled out of the compressor at a very high and irregular pressure. The regulator is considered a gatekeeper in that he or she ensures that the pneumatic tools or machines that the air is passed to run on run at their best, safe pressure.

While choosing an Air Regulator Valve, make sure to check the quality and material used to be sure about long-lasting performance.

Fun Fact 1: “The 'icing'" Factor: If the compressed air supply contains too much moisture, high flow rates can cause a regulator to freeze up completely.”

State the Types of Air Regulators.

The following are the types of an air regulator:

1. General Purpose (Relieving) Regulators

This is the most common type. It has a relieving mechanism; this mechanism enables the regulator to pump out the surplus downstream pressure to the atmosphere when there is a decrease in the pressure setting. This renders them suitable in the majority of pneumatic circuits in industries.

2. Non-Relieving Regulators

These, unlike the relieving type, do not exhaust downstream pressure. They find use in the applications where the air or gas under regulation must not be discharged to the surrounding environment so as to handle the gases that are costly and toxic to the environment.

3. Pilot-Operated Regulators

They control the main valve not by a manual knob and spring but by air pressure (a pilot signal). They are normally employed in high-flow operations or when the regulator is in a very difficult-to-reach position and thus the pressure is to be adjusted remotely.

4. Precision Regulators

They are used in processes where very tight control of pressure is needed with minimum possible loss of pressure during flow. They are very common in laboratory or medical equipment and high-precision tensioning machines.

5. Filter-Regulator (FR) Units

These are a combination of a moisture/particulate filter and a regulator in one body. They are compact and are usually used in order to guard downstream equipment against pressure spikes and other contaminants such as oil or water.

6. High-Pressure Regulators

Normal regulators tend to level up to 10-12 bars. Variable versions with high pressure are built using heavy-duty materials (stainless steel or brass) to support the inlet pressure, which can be over 300 bar (as in SCUBA or special industrial gas systems).

Are You Looking for the Best Air Regulator Supplier in Noida?

If you are looking for the best air regulator supplier in Noida, then VS Pneumatics is the best choice. The brand is known for it’s best-in-class product quality maling it a preferred choice for many industrial applications.

About VS Enterprises

VS Enterprises (V.S.Pneumatics) is a well-respected distributor and authorized distributor of pneumatic components. The company has been supplying high-quality pneumatic and industrial automation components to customers in India since 2013. The product line includes pneumatic cylinders, solenoid valves, air regulators, PU tubing, one-touch fittings, actuators, foot pedals, and all other accessories required for a successful and efficient automated production system. The goal is to provide durable, high-performance components that enable manufacturing and production facilities to improve their operating efficiencies while reducing their downtime. VS Pneumatics serves the automotive, manufacturing, packaging, food processing, and construction industries. With years of experience in the pneumatic industry, VS Pneumatics will assemble successful and long-term relationships by providing an excellent quality product, customer service, and on-time delivery to the entire country of India.

Did you know? “The "Hiss" Means It's Working: "Relieving" type regulators automatically vent excess pressure through a small hole to maintain the setpoint, which often creates a distinctive hissing sound, indicating it is functioning properly.”

What Are Applications of an Air Regulator?

Here are the applications of an air regulator:

• Manufacturing Unit
• Workshops & Garages
• Industrial Sector
• Medical Sector
• Automotive Industry
• Assembly Lines
• Oil and Gas Industry
• Laboratory Area
• Food and Beverages
• HVAC system
• Water Treatment Plants
• Printing Industry
• Textile Unit
• Mining Area
• Maintenance Setups

Always choose a reliable and good-quality air pressure regulator because it will provide long-lasting performance and excellent results.

Here is another blog you might be interested in.

6 Factors to Consider When Selecting Janatics Products Suppliers

Technical Specification

The following table talks about the technical specification of an air regulator.

What Is the Working Principle of an Air Regulator?

Here is the working principle of an air regulator:

1. Establishing the Desired Pressure

• The adjustment knob is turned by the user.
• This compresses a spring inside the regulator.
• The diaphragm is subjected to the force exerted by the spring.

2. Opening the Valve

• The diaphragm is forced downwards by the spring force.
• This movement opens the valve.
• The inlet and outlet are compressors with air flowing in and out respectively.

3. Pressure Build-Up at Outlet

• As air flows, outlet pressure begins to increase.
• This pressure pushes back against the diaphragm.

4. Achieving Balance (Regulation Stage)

• At the same time when outlet pressure is equal to spring force, the diaphragm settles.
• To ensure constant pressure, the valve closes partially.

5. Automatic Adjustment

• When outlet pressure is lower - force of spring on valve increases its opening.
• In case outlet pressure increases - diaphragm drives the valve closed.
• The continuous adjustment guarantees this stability of output pressure.

For instance,

You are using an air regulator ¼, it will help in automatically maintaining a constant air pressure by adjusting the internal valve with the help of a spring and diaphragm mechanism.

Fun Fact 2: “The "Feedback" Trick: High-quality regulators "sense" downstream changes. If a tool activates and pressure drops, the regulator instantly opens wider to restore balance—performing thousands of micro-adjustments per minute.”

Why Choose VS Enterprises for an Air Regulator?

Here are some of the reasons:

• They ensure precise pressure control.
• They make compact and practical designs.
• They use high-quality material, ensuring a durable build.
• They provide products with easy adjustment features with simple and ergonomic knobs.

Due to their affordable price strategy, they have become a leading Air Regulator Supplier in Noida.

Here are the most asked questions related to an air regulator.

FAQs

Q.1 How will it affect the system when air regulator filters are not used?

Air regulator filters are needed to prevent the entry of contaminants into the system that damages equipment, lowers efficiency and adds to the high cost of maintenance.

Q.2 Who provides the best quality air regulator?

VS Pneumatics provides the best quality air regulator. It is an established platform that is known for its great product quality and on-time delivery.

Q.3 Q.3 State ways to choose the right air regulator.

Here are some of the ways to choose the right air regulator:

• Pressure Range
• Flow Capacity
• Port Size
• Material Quality

Q.4 Is it possible for an air regulator to reduce high pressure?

Yes, it is possible for an air regulator to be specially designed to decrease high inlet pressure to lower and controll output pressure.

Q.5 How often should an air regulator be maintained?

Frequent inspection and cleaning are advisable to maintain good operation, especially in the industrial setting where it is used on a continuous basis.

Conclusion

Air regulators are used for pressure control and reduced air wastage. Light weight, durable and compact design make it ideal to be used in different industries for a smooth working process. By following the right working principle, it helps in uninterrupted industrial operations. Also check the quality before investing for long-lasting performance.
