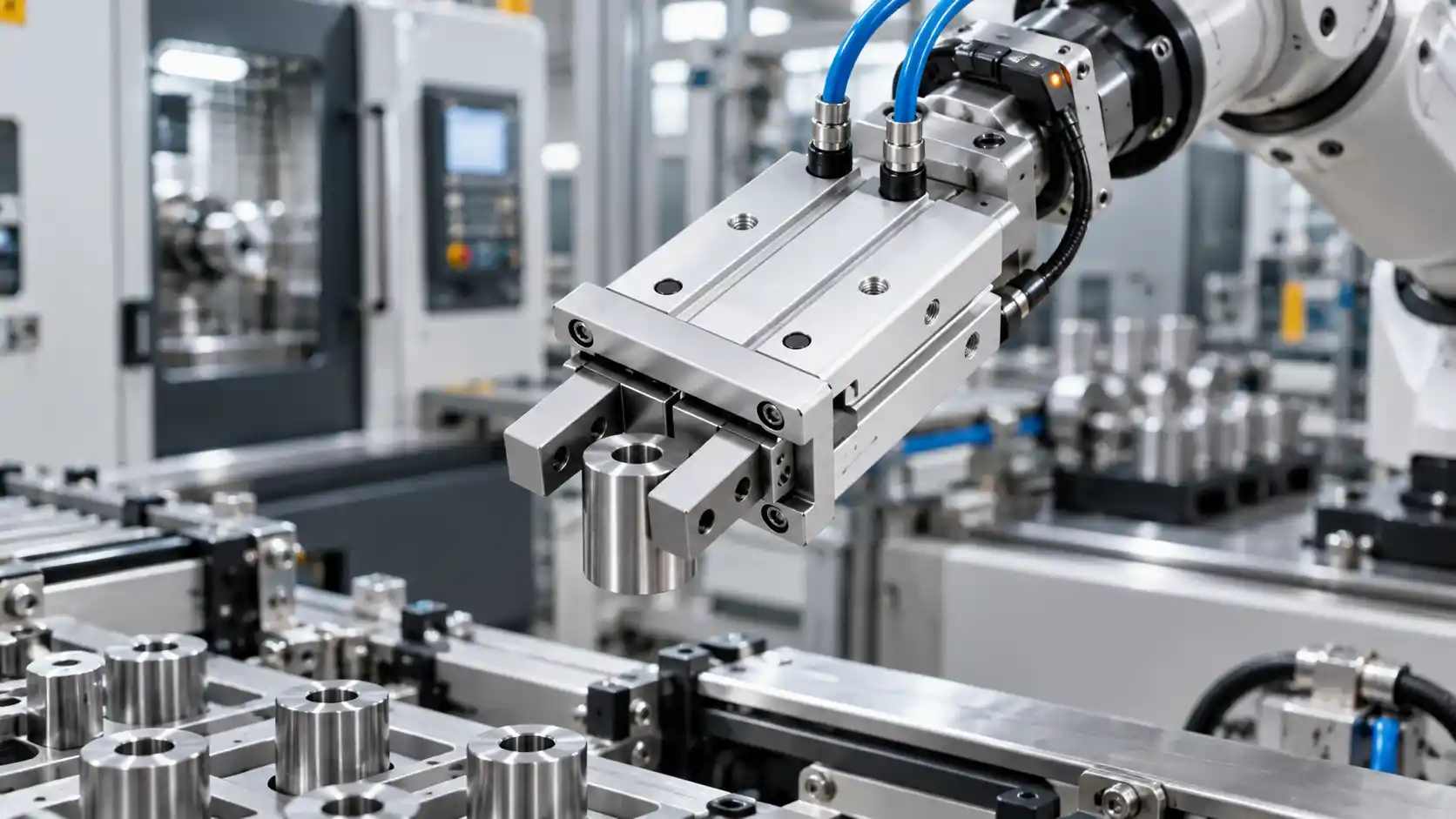

Parallel Grippers: Types, Working Principle, Design & Industrial Applications

By: V.S. Enterprises
2026-09-07

Anyone who has ever seen a robotic arm have to drop a critical part part way through a cycle is familiar with the instant headache. That is what's why smart factory configurations are heavily dependent on parallel grippers to maintain the momentum.

The Parallel Gripper's action at its base is to move the jaws in a straight synchronized movement, capturing parts with absolute precision. From installing robotic handling systems to using them in combination with industrial pumps and automated lines, you always have a firm grip.

Most buyers are left with the pneumatic parallel gripper due to its toughness, simplicity, and its just work quality. It's a simple and low stress upgrade to keep throughput safe.

What Is a Parallel Gripper?

Imagine a parallel gripper is the specific mechanical arms your automated set-up could never have envisioned. Its jaws move straight towards or away from the work piece and open and shut in perfect synchrony unlike regular clamps which open and shut on a hinge.

With this straight-line motion, industrial parallel grippers can pick up parts on the outside or pull them inside-out. As a pneumatic gripper, this movement is actuated by simple compressed air, providing uniform clamping force each cycle. Their secure grip is a game-changer for all high-speed assembly projects, pick and place operations, and automated packing lines where precision is a must.

How Do Parallel Grippers Work?

Ever wondered what happens inside when there's a line without a single hitch? Here is a breakdown of the parallel gripper working principle:

Air Pressure Kicks In: Compressed air is stored in an internal chamber, providing your piston with a force on the fly and under control.
Precision Drive Engages: The linear piston stroke is converted into matched jaws by an internal parallel gripper mechanism (typically a clever rack-and-pinion or wedge-hook).
Even Contact Made: Both jaws will move inwards at the same time, exerting equal pressure on opposite sides of your part to ensure no part is pinched unevenly or slips.
System Sync: They are connected directly to your air lines and position sensors, seamlessly talking to your primary control system for smooth, repeatable grips at a button's press.

Types of Parallel Grippers Used in Industrial Automation

The selection depends on the particular requirements for payload and precision on the shop floor. The following are the most common parallel grippers you will encounter:

2 Finger Parallel Grippers

For lines that have predictable part sizes, a 2 finger parallel gripper is a good workhorse to have on your team. Constructed with a clean 2 jaw parallel gripper design, it grips the workpiece from two sides without any fuss. They are 100% essential for fast pick-and-place operations, packaging cells and feeding CNC machines. They are great because they are compact, take parts in a matter of minutes, and align parts perfectly each and every cycle.

Long Stroke Parallel Grippers

A standard gripper simply won't do the job if your line requires mix and match part sizes. This is where a long stroke parallel gripper comes in handy. These machines feature additional jaw travel to snatch large parts, but they can also close up tightly on smaller parts without the need to change tools during operation. Ideal for all multi-use packaging stations, foundry applications and flexible automation cells where handling various part dimensions on a single line is a daily requirement.

Rotating Parallel Grippers

Want to pick up a part and flip it up on the spot? That's where rotating parallel grippers come in handy. These units feature firm linear clamping and smooth rotary motion in one compact unit, as opposed to having to add multiple actuators to your cell. Unmatched for assembly cells, orientation checks and loading CNC lathes when the work piece must be spun 90 or 180 degrees prior to placement. Better tooling, quicker cycle times and considerably less cable tangling to handle.

Electric Parallel Grippers

If it seems a bit too rigid when you work with a simple open and close clamping, an electric parallel gripper offers you full control throughout the entire stroke. Electric air-driven models allow direct code adjustment of clamping force, velocity and jaw position, unlike basic air-driven models. They are ideal for delicate glassware, delicate electronics and also mixed-batch production with varying part sizes. Air grippers are fast and cheap, electric grippers provide smart and force-sensitive feedback that ensures sensitive parts remain safe.

Working Principle of Pneumatic Parallel Grippers

Ever wondered how air pressure becomes so extreme precision? Let's step-by-step look at the actual pneumatic parallel gripper working principle:

Clean compressed Movement: air enters the cylinder port, and immediately pushes an internal piston, resulting in strong linear motion.
Mechanical Links Sync the Jaws: Internal wedge-hooks or rack-and-pinions translate that piston stroke to both fingers, so that they open and close together.
Constant Air Pressure creates Steady Clamping Force: Your pneumatic parallel gripper has a consistent clamping force that will not drop parts mid-cycle.
Easy Automation Hookup: Standard air fittings & magnetic sensors easily connect to your main PLC, producing millisecond response times on high-speed packaging or assembly lines.

Parallel Gripper Design and Construction Features

With a high-performance unit in your hands, you know that each and every part is designed to minimize slop and your line will never get hung up. The parallel gripper design is based on the heavy duty linear guide rails which ensures that the jaws do not twist and keep the fingers always aligned even when taking hold of a part off-center. In addition, a small parallel gripper cylinder produces a huge clamping force in a confined space, without adding unwanted weight to the robot, which is another critical factor in space-sensitive applications.

Pre-tapped mounting points allow you to easily replace standard fingers with custom 3D printed or machined pads for any workpieces. Internal gears are encased in anodized aluminum and stainless steel to prevent them from being exposed to extreme coolant spray, loose metal particles and dust from the shop floor. Plus, balanced stroke options provide you with the most jaw travel for a compact footprint so you can never settle for sacrificing grip for size.

Key Components of a Parallel Gripper

These are the key parallel gripper components that operate in perfect harmony and ensure your automated line operates free from downtime.

Jaws: Custom fingers that grip snugly around the object or grow into the object.
Piston & Cylinder: Linear motion powered by repeatable pneumatic power in the internal parallel gripper cylinder.
Precision Guides: Ground slide rails which guide the jaw in an un-twisted direction under heavy loads.
Proximity Sensors: These are position sensors which communicate to your PLC if a part is gripped or not.
Mounting Brackets: Sturdily plate mounting for permanent mounting on robot arms or linear actuators.

Industrial Applications of Parallel Grippers

There are industrial parallel grippers pulling heavyweight across the majority of every production floor that can be found in modern times, moving parts without missed cycles and without causing any mess:

Automotive Manufacturing: Engine parts, brake rotors and sheet metal stampings are moved between CNC workstations with ease in this automotive application.
Electronics Assembly: Micro Devices: Mini models manage micro assembly jobs, positioning delicate circuit boards and microchips without causing pricey impact harm.
Packaging & Palletizing: The high speed pneumatic gripper application sorting and boxing and stacking consumer goods at a fast speed on continuous conveyor lines.

Parallel Grippers in Robotic Pick and Place Systems

With a quick robot arm complemented by accurate end-of-arm tooling, your cycle times drop. Using parallel grippers for automation gives your robot the mechanical consistency it needs to grab parts at high speeds without slipping. The jaws move in a straight motion thus centering all workpieces in the same location. This pinpoint accuracy allows your robotic gripper to load CNC chucks, feed sorting conveyors and stack products with absolute accuracy, increasing the overall plant productivity rate with virtually no scrap.

Benefits of Using Parallel Grippers in Automation Systems

The use of a more reliable end of arm tooling makes a positive difference in the daily efficiency of a plant when upgrading a line. Key benefits of parallel grippers include:

Positional Errors Eliminated and Costly Part Scrap Avoided: Pinpoint Repeatability is achieved with straight line jaw travel automatically centering workpieces each cycle.
Standard Mounting Patterns: Industrial automation grippers are easily mounted onto the major robotic arms and existing pneumatic system.
Space-Saving Design: Ultra-compact footprints pack high clamping force into tight work cells, leaving plenty of room for surrounding tools and sensors.

How to Select the Right Parallel Gripper for Your Application?

Selecting the wrong end-of-arm tooling leads to loss of parts, long cycle times and ongoing headaches for your maintenance team. When deciding whether to buy parallel grippers for your facility, parallel gripper selection is really all about comparing mechanical requirements to the floor.

First of all, determine what your total payload is and how much gripping force you need, including for fast robot acceleration to prevent parts from going airborne mid-stroke. Then choose a stroke length appropriate for your largest parts variations, but one that will provide the manufacturer's rated clamping power from the air pressure you have available in your shop. Lastly, assess your operating environment (such as cutting fluid spray, high ambient temperatures or heavy dust) and select the correct IP rating seals; and always check that the mounting bolt patterns for your robot arm are correct.

Why to Go for a Reliable Parallel Gripper Manufacturer?

If every automation line is reliant on one end-of-arm tool, cutting corners in build quality is a huge risk. When you work with a trusted pneumatic gripper manufacturer such as V.S Enterprises, you are guaranteed to receive hardened, high precision components designed for continuous industrial use:

Rock-Solid Product Reliability: V.S Enterprises engineers units to endure millions of high-speed cycles without dropping clamping force or suffering internal seal blowouts.
Expert Technical Support: You will find that there are dedicated pneumatic experts who will help you with precise sizing, mounting options, and seamless setup of automation.
Customization Options: Custom stroke lengths, special jaw mounting and harsh-environment seals created for your specific line needs.

When you are looking for a parallel gripper manufacturer, you can be sure that you will have less downtime and maintain a full production line.

Conclusion

Whether it's high-speed pick-and-place cells or heavy-duty machining, parallel grippers are the backbone of modern factory efficiency. The right mechanical specs will make your throughput keep climbing and repeatability for years to come. In V.S Enterprises, we offer top-notch industrial automation solutions that are designed to meet your specific floor needs.

Looking to upgrade your production line? Call V.S Enterprises today to discover what gripper you are looking for!
