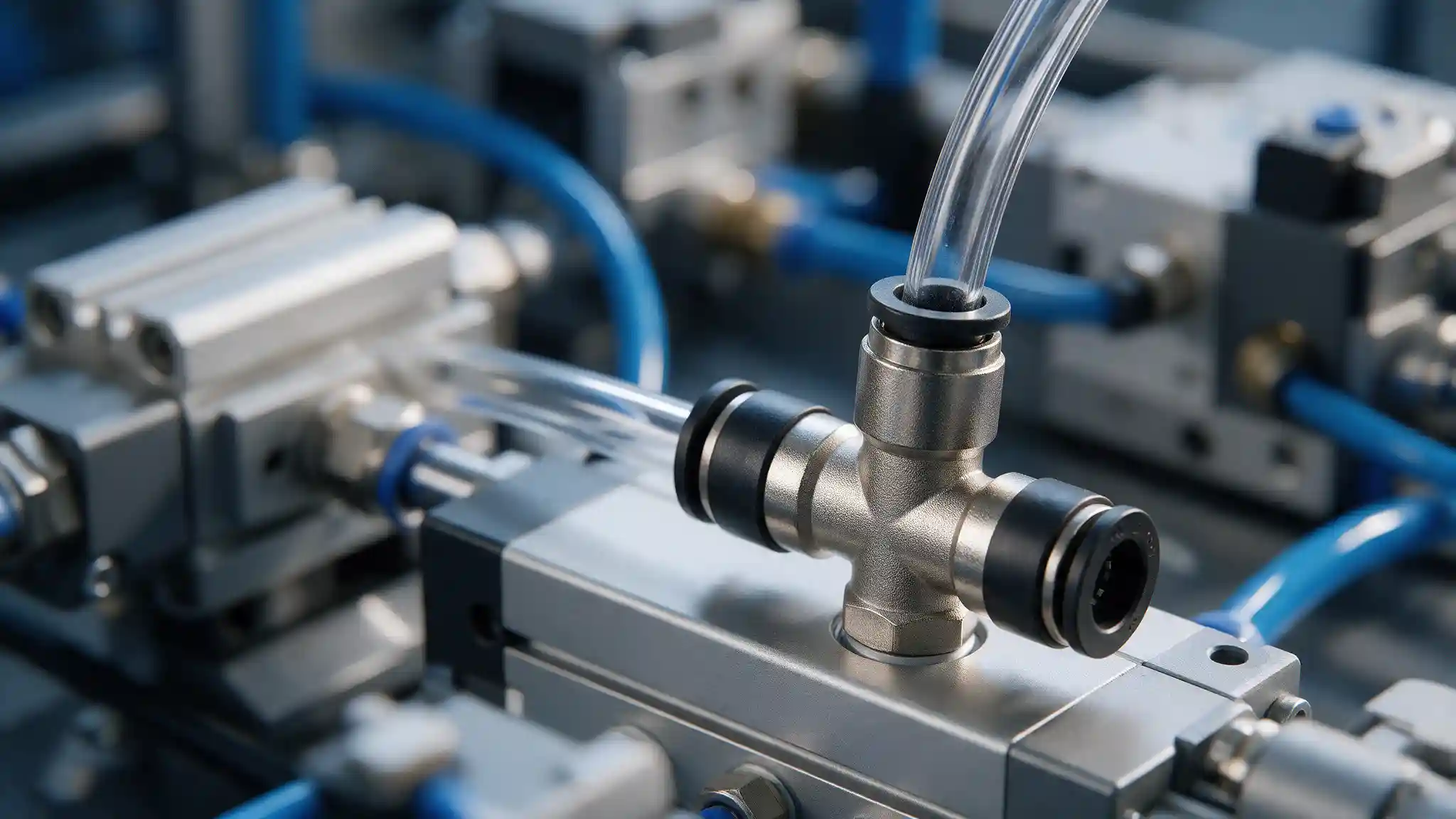

Common One Touch Push Fitting Problems and How to Fix Them

Loose air lines are not often a big tip off. It makes your compressor work harder than it must, yet it hisses softly. For most plants, it is not the machine that causes the problem. A small linking part. One touch push fitting ensures the secure placement and air flow of tubing. A bad one results in leaks, cracked tubes and slow moving actuators. Throw in wrong installation and downtime occurs.

This guide covers the problems we see most often with pneumatic push fittings, why they happen and how to fix them. Have it on hand for easy reference by your maintenance staff.

What Is a One Touch Push Fitting and How Does It Work?

One touch push fitting is a connection that requires no tools. Insert the tube and it will lock. There are four components to that:

• The tube is secured by a tight fitting collet with small metal teeth.
• Air is prevented from leaking around the tube by an internal O-ring or seal.
• A release ring is used to disengage the collet if you need to take off the tube.
• A threaded body is attached to your valve, cylinder or manifold.

Under line pressure the collet teeth bite harder as the tube is pulled, thus increasing the grip. Push to connect fittings can reduce the installation time, and also reduce the number of wrenches or sealants on the tube side. They still need the correct tubing and handling to make them just right.

6 Common One Touch Push Fitting Problems and Their Solutions

Good fittings are no good if the conditions are incorrect. Most one touch push fitting problems manifest as minor symptoms first:

• Slight hiss
• Loose tube
• Slow cylinder

To prevent damage to Pneumatic tube fittings and to reduce wasted compressed air and unplanned stoppages, catch them early. Here are the 6 most common issues that we encounter.

Air Leakage Around the Fitting Connection

The most frequent complaint is one touch push fitting leakage. It is typically a result of one of these causes:

• A faulty or worn O-ring within the fitting.
• A tube with the end not fully inserted.
• The scratches or flat spots on the surface of the tube.
• A fitting that is threaded at an angle or not sealed properly.

Take soap and brush soapy water on the joint and check if there are any bubbles to find the leak. Take out the tube, cut it square again and insert it again until it stops. Replace fitting if there are still bubbles. Go back to the joint to see if there are small leaks after the line is full pressure, as small leaks frequently only appear at this stage. Pneumatic air leakage is a waste of energy each and every shift.

Pneumatic Tube Not Locking Properly

If a tube is pulled out easily, the lock is not working. Common reasons include:

• Dirt and debris that have built up inside the tube due to worn collet teeth that no longer bite into the tube.
• When the tubing is too large in outside diameter.
• Tube that is soft or low grade with the ability to bend under grip.
• An incomplete tube insertion.

After inserting, give the tube a gentle tug. It should not move. Check the size of the tube against the size on the fitting body. A common problem that occurs with pneumatic tube connectors is using mixtures of metric and inch sizes. Change any push-to-connect fittings that have a worn-out collet.

Difficulty Removing the Pneumatic Tube

If the tube is stuck it is both a nuisance and will only make things worse to try and force it. Typical causes are:

• A dirty, corroded or jammed release ring.
• Simply pulling the tube, without pressing the ring.
• A system that is still in a condition of being pressed or strained. A still under press system.

First, always de-pressurize the line. Press the release ring squarely towards the body and pull the tube while holding it down. Do not twist or use any tool. Dust off the ring before playing. Correct One touch push fitting removal prevents life time damage to the collet and allows for use of your pneumatic push fittings for longer

Cracked or Damaged Fitting Body

Cracks don't usually happen for no reason. Be alert to these triggers:

• Over-tightening during threading
• Nearby vibrating machines all the time
• Heavy or unsupported tubing side loads
• Exposure to heat or chemicals beyond the material rating.

Look for hairline cracks around the thread, where stress typically is most concentrated. If the body is cracked, it can't be fixed. Immediately replace, as this type of pneumatic fitting damage may result in a tube blow-off. Use support tubing and clip to keep it taut, allow for some slack around moving components and select the appropriate industrial pneumatic fittings for the area of use.

 The wrong Fitting Size or Tube Compatibility

If it's a good fit, it will leak sooner or later. Before installing, ensure that these points match:

• The diameter of the tube is measured outside (not inside) of the tube.
• The type of thread to be inserted in the equipment port and the size.
• Tubing (Polyurethane or nylon).
• Working pressure and temperature rating.

Look at the tube markings and thread standard on the equipment. Never assume. One touch push fitting sizes are best determined at the beginning to avoid rework and correctly sized pneumatic tube fittings hold much longer.

 Reduced Airflow or Pressure Drop

Slow actuators are usually an indication of a limited flow, not a weak compressor. Possible causes are:

• Crushed or kinked tubing.
• Fitting bore is blocked by debris or water.
• A bore that is too small to accommodate the flow required.
• The number of connectors in a single short run is too high.

Make sure that bends are straight, line is clean, and that the flow capacity of the fitting matches the cylinder demand. A significant pneumatic fitting pressure drop is an energy loss and a production slow down. When flow is tight, increase the bore size of a tube and use full-bore pneumatic push fittings. Look on the compressor side as well, because a clogged filter can result in the same symptoms.

How to Prevent Common One Touch Push Fitting Problems

Most failures can be prevented. Few habits in the pneumatic fitting installation can make the most difference:

• Use a good tube cutter to cut the tubing square.
• Clear of burrs and clean with cloth.
• Insert tube completely until it comes to a stop.
• Test new connections with a pull test.

Include an easy one touch push fitting maintenance program too. Check joints at planned shutdowns, listen for leaks and document any joints that leak regularly. Have back-up fittings and tubing available in the correct sizes, meaning that always whatever is around the corner is used for repairs. Small checks are more cost-efficient than a stopped line.

When Should You Replace a One Touch Push Fitting?

Not all fittings are entitled to a second life! If any of these signs are noticed, a one touch push fitting replacement is required:

• Recurrent leak (after re-seating of the tube).
• A cracked, chipped or deformed body.
• Worn or damaged collate teeth.
• Multiple tube pulls at the same joint.
• Corrosion or jammed release ring.

It's important to replace a low dollar part early because it's less costly than losing production time. Record what parts are replaced and look for patterns, such as a particular line failing more often than others. When you see any of these signs, plan a one touch push fitting replacement.

How to Choose Reliable One Touch Push Fitting Manufacturers and Suppliers in India

The quality of the fit can differ significantly depending on the supplier; you need to make a choice. When choosing One touch push fitting suppliers, you need to consider the following:

• It comes in a variety of sizes, both metric and inch tube.
• The material and quality of the seals.
• The pressure and temperature ratings are indicated.
• Tubing compatibility information.
• Clear product documentation; datasheets.
• The time to deliver and after-sales service.

Request samples prior to ordering in bulk. India's reliable One touch push fitting manufacturers provide their specifications openly and respond to technical inquiries promptly. They are also very easy to check the product information before you make a commitment.

V.S. Enterprises assist industrial buyers in narrowing down the choices, and find the right fittings to use in their lines. Your tube size, thread type and working pressure will be used to match to your application and the team will respond accordingly. When ordering, ensure that the supplier will be able to provide proper documentation to support the ratings.

Explore Industrial Pneumatic Components at V.S. Enterprises

Our product line includes basic industrial pneumatic fittings and components such as valves, cylinders, and air preparation units. Thinking of comparing with one touch push fitting suppliers? Inform the V.S. Enterprises of your tube size, type of thread and pressure requirement and they will make an appropriate suggestion. Please submit your enquiry now.

Conclusion

Three requirements for reliable air lines are good installation, regular checks and the timely change of any worn lines. Employ the correct tube, cut it square and press in completely. Repair any leaks immediately, and fix any damaged fittings rather than patch them. These are the habits that will make sure that all one touch push fittings, and all your pneumatic push fittings are working correctly, as well as keeping your compressed-air system running properly.

FAQs

1. Why does my push fitting leak?

Leaks typically occur through a worn O-ring, a partially unplugged tube or a scratched tube surface. Recut the tube square and push in completely and test for leaks with soapy water. If bubbles persist, replace the one touch push fitting.

2. Can push fittings be reused?

Yes, if the collet and seal are not damaged. Always inspect the teeth, O-ring and release ring. Replace push to connect fittings if the tube is not gripping tight.

3. How do I pick the right size?

The first thing you need to do is to match the outside diameter of the tubes and then the type of port threads. Then verify the pressure and type of tubing used. Please refer to the product datasheet before ordering.

4. Can I use any tubing?

No. Tubing should be of the proper outside diameter (O.D.) and be made of a compatible, tough material like polyurethane or nylon. Tubing will not grip or seal, if it is too soft or too small.

5. Should I depressurize before removal?

Yes, always. Air pressure should be released prior to pressing the ring and then pulling the tube. This will prevent any sudden movement of the tube and will save the collet from any damage.

6. How often should I inspect fittings?

Check them regularly during regular maintenance shutdowns and whenever you hear a leak or notice a decrease in pressure. Frequent checking should be done for lines with high vibration.
