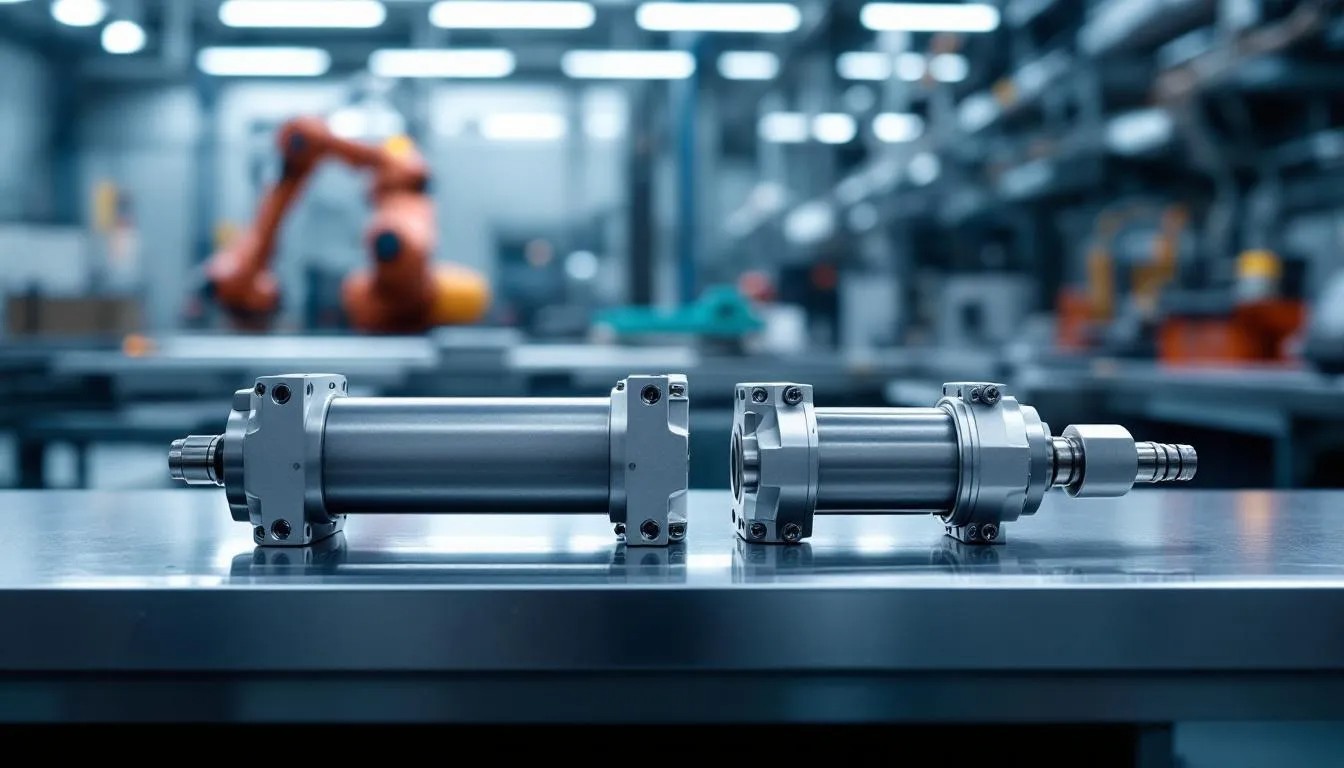

Pneumatic Twin Rod Cylinders vs. Pneumatic Compact Cylinders: Major Differences Vs Applications

When it comes to industrial automation, the need to use the correct component is important. They are useful in the performance of different activities, such as manufacturing, assembly, and packaging. The pneumatic twin rod cylinder and the pneumatic compact cylinder are two of the most widespread forms of pneumatic actuators.

Although both of them are meant to move compressed air to linear motion, they have immense differences in terms of design, functionality, and applications. Using the wrong one often leads to interference in operations.

What is a Pneumatic Twin Rod Cylinder?

A pneumatic twin-rod cylinder comprises a linear actuator which is made up of two parallel rods attached to one piston. These rods travel together and are normally directed by bushings or linear bearings, enabling the rods to move in a highly stable and non-rotating linear fashion.

The peculiarity of this cylinder is that it can withstand the side loads and not rotate, so it does not require any extra external guides or anti-rotational devices.

Key Features:

• Dual rods offer better stability and precision

• Provides built-in anti-rotation

• Enhanced capability to handle lateral and off-center loads

• Ideal for high-cycle operations

• Offers higher load-bearing strength than single-rod cylinders


Common Applications:

• Pick-and-place systems

• Conveyor belt automation

• Material handling and sorting

• Precision assembly lines

• Packaging machinery

• Robotics arms or automation tools requiring exact movement.

V.S. Enterprises is one of the leading twin-rod pneumatic cylinder manufacturers in Noida. Contact us today.


What is a Pneumatic Compact Cylinder?

This Pneumatic Compact cylinder is a single-rod actuator designed for compact spaces. With their small body and limited stroke length, they are an ideal choice for applications where usual cylinders won’t fit. While they may not be ideal for complex applications, they are extremely efficient in systems where there is a requirement for quick motions.

Key Features:

• Slim and space-saving design

• Lightweight and easy to install

• Suited for short-stroke, repetitive tasks

• Economical and efficient for low-force applications

• Custom mounting options to suit compact systems


Common Applications:

• Clamping systems

• Automated doors or covers

• Miniature presses or stamping tools

• Compact industrial panels

• Mobile or portable machinery


Key Differences Between Twin Rod and Compact Cylinders

Let us look at some of the major differences between these two types of cylinders.

Choosing the Right Cylinder for Your Application

Choose a pneumatic twin rod cylinder if:

• Your application requires precise, stable linear motion

• You need to prevent rotation of the attached load

• The load is off-centered or involves lateral forces

• You’re designing a pick-and-place system or robotic arm

• The machine needs to run continuously in a production setting


Choose a pneumatic compact cylinder if:

• You have limited installation space

• The motion is simple and short-stroke

• The load is light and evenly distributed

• You're building a lightweight, portable, or modular system

• Budget is a key consideration, and the application doesn’t require high precision

Want to place an order for pneumatic compact cylinders in Noida? V.S. Enterprises has got you covered.


Integration with Other Pneumatic Components

It does not matter if you are using a twin rod or compact cylinder; based on your requirement, it is essential to pair them with quality components from the right source for best performance. Some such products include air regulators, solenoid valves, and PU tubes that ensure your industrial automation is smooth and your machines have a longer life.

At V.S Pneumatics, we deal with a complete variety of pneumatic automation parts, including air blow guns and PU coils, as well as high-quality cylinders, in either twin rod or compact versions. We are one of the leading air blow gun manufacturers in India and are known to provide solutions to various industries such as manufacturing, packaging, textile, automotive, and more.

Why Choose V.S. Pneumatics for Pneumatic Cylinders?

We are not just a product supplier — we are your engineering partner. Here's why customers across India trust V.S. Pneumatics:

• Wide Product Range – From air preparation units to automation cylinders, we have it all.
• Premium Brands – We offer products from leading brands like Airolyx, Janatics, and Mercury, known for their reliability and durability.
• Customisation Options – Need a special size or stroke length? We offer custom-built pneumatic cylinders based on your project needs.
• Fast and Reliable Delivery – No matter where you are located in India, our dedicated team ensures that your order reaches you on time, no matter where you are located in India.

Conclusion

The decision of a pneumatic twin rod cylinder or a pneumatic compact cylinder is solely reliant on your application, space availability and load handling demands. Pneumatic Twin rod cylinders are best suited for places where stability and precision are required, whereas when it comes to confined spaces, compact cylinders are the best choice.
