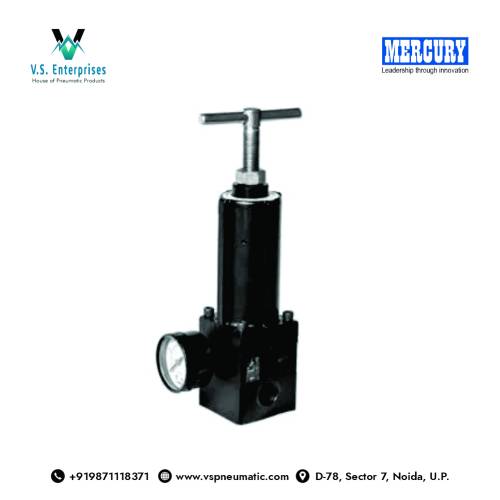

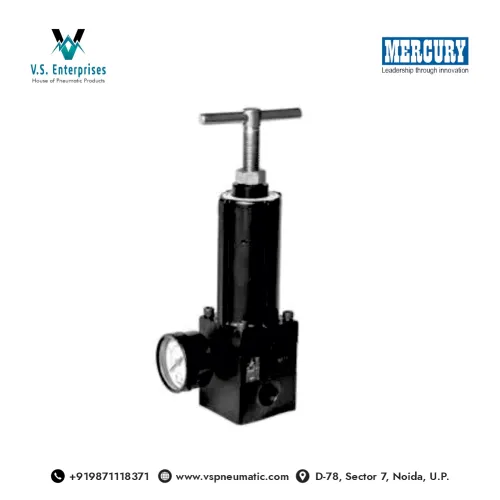

VS Enterprises supplies the Mercury RH04 high pressure regulator from Noida for air lines that run above normal shop pressure.
Standard regulators are designed for normal shop-air pressure. Some systems, such as PET blow moulding high-pressure circuits and test equipment, run at much higher pressures. A high pressure regulator is built and rated for that duty.
High-pressure blowing circuits on PET machines, pressure test benches, and high-pressure gas lines were approved by the manufacturer.
Inlet pressure, required outlet pressure, port size and media.
When installed properly, a high pressure regulator maintains a constant outlet pressure and ensures that the pressure is kept below the rating.
Do not exceed an inlet pressure of 30 bar and outlet pressure between 0 and 25 bar. This will provide the regulator with a more reliable and long service life on PET blowing circuits and test benches.
Use data from the 1/2" BSP female ports for connecting matching fittings and gradually increase the outlet pressure until it is at your desired level. Check with the manufacturer before connecting any gas line for approval of the media.
Figures come from the Mercury catalogue and are confirmed for your size at quotation.
|
Parameter |
Correct specification |
|
Product |
Mercury RH04 high-pressure regulator |
|
Maximum inlet pressure |
30 bar |
|
Regulating range |
0–25 bar outlet pressure |
|
Port size |
1/2" BSP female |
|
Body material |
Aluminium |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
No matching products from other brands are currently available.
A few practical details to help you frame your next engineering project.
No. Always use a regulator rated above your maximum inlet pressure.
Yes. Share the model code from the regulator body.
