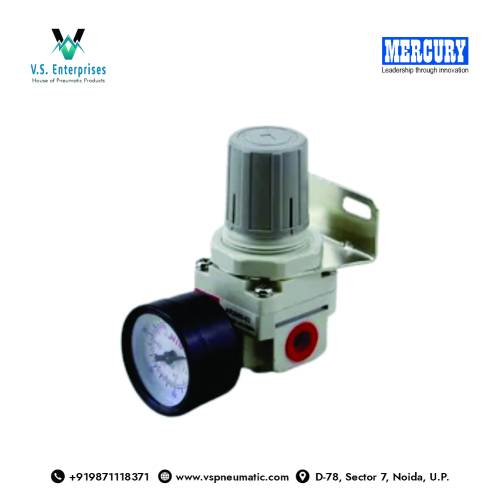

VS Enterprises supplies Mercury air regulators from Noida for machines that need a steady, adjustable air pressure.
An air regulator reduces the higher, fluctuating line pressure to a lower, constant pressure set by the adjusting knob. A gauge shows the set pressure. Steady pressure means repeatable cylinder force and speed, and less wasted air.
Machine air inlets, individual circuits that need a lower pressure, and gentle-force applications such as holding delicate parts.
A main regulator on the compressor will assist, but if multiple machines start-up at the same time, line pressure will still decrease. When a regulator is used at each machine, the impact of one machine's demand doesn't affect the clamping or feeding forces of other machines, which creates local circuits.
This is especially important in repeatable motion, force or timing required applications like packaging, pressing, clamping and automated assembly. Well regulated also guard against over-pressurization, thus minimizing air usage and wear on seals and valves.
Port size and the pressure range you need.
Figures come from the Mercury catalogue and are confirmed for your size at quotation.
|
Parameter |
Correct specification |
|---|---|
|
Product |
Mercury air regulator |
|
Port size |
1/4", 1/2", 3/4" and 1" BSP |
|
Regulating range |
0.5–8.5 kgf/cm² for 1/4", 3/4" and 1" models; 0.5–9.9 kgf/cm² for 1/2" models |
|
Gauge |
Optional; gauge connection is provided |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
A few practical details to help you frame your next engineering project.
A main regulator helps, but each machine should have its own for stable local pressure.
Line pressure varies. A regulator at the machine keeps pressure, and force, steady.
