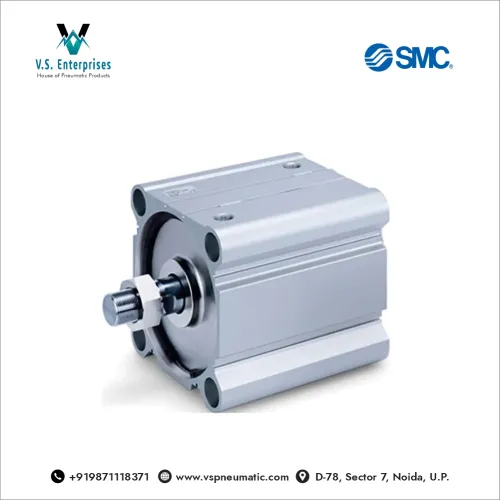

Who needs it: Engineers and maintenance teams using pneumatic cylinders where installation space is limited. VS Enterprises provides SMC compact cylinders from Noida.
Benefit to your process line: It offers controlled linear motion in a compact design, thus being appropriate for short stroke application as well as where space is limited.
Issues it resolves: Limited mounting space, bulky cylinders and the need for short-stroke pneumatic movement.
Compatibility with: SMC auto switches, pneumatic valves, FRL units, fittings and compatible mounting accessories.
Figures come from the SMC catalogue and are confirmed for your size at quotation.
|
Parameter |
Details |
|
Product type |
SMC compact cylinder |
|
Cylinder type |
Compact pneumatic cylinder |
|
SMC series |
CQ2, subject to model |
|
Bore size |
Available in different sizes |
|
Stroke |
Available in different strokes |
|
Mounting |
As per SMC model |
|
Auto switch option |
Available on selected models |
|
Working pressure |
As per SMC model |
|
Applications |
Automation equipment and compact machines |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
A few practical details to help you frame your next engineering project.
Yes, selected CQ2 versions can be used with compatible auto switches. Confirm the exact part number before ordering.
Share the complete part number so the bore, stroke, mounting and other options can be checked for an exact match.
They are commonly used in automation machines and applications where the available installation space is limited.
