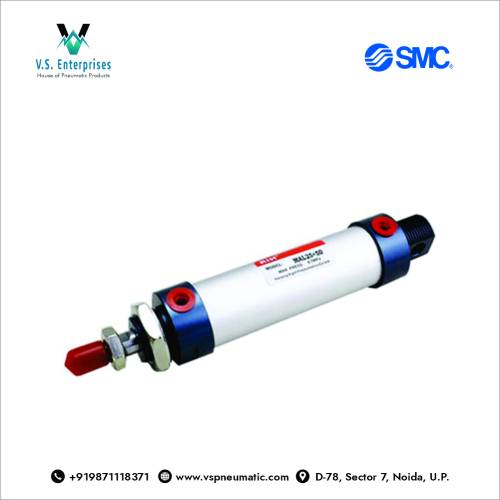

Check on the required bore, stroke, mounting area, and rod end design prior to purchase. Requirements: Engineers and maintenance departments utilizing small pneumatic cylinders for small movements of machinery. The VS Enterprise provides SMC mini cylinders for MAL type uses from Noida.
How it helps your process line: Provides compact and controlled linear movement where space is limited and a small cylinder is required.
Issues it resolves: Limited installation space, bulky cylinders and replacement needs for small pneumatic applications.
Compatibility with: SMC pneumatic valves, fittings, air preparation units and compatible cylinder accessories.
Figures come from the SMC catalogue and are confirmed for your size at quotation.
|
Parameter |
Details |
|
Product type |
SMC mini cylinder for MAL-type applications |
|
Cylinder type |
Mini round cylinder |
|
SMC series |
CJ2, subject to model |
|
Bore size |
Available in different sizes |
|
Stroke |
Available in different strokes |
|
Mounting |
As per SMC model |
|
Rod end |
As per model |
|
Working pressure |
As per SMC model |
|
Applications |
Compact machines and small pneumatic movements |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
A few practical details to help you frame your next engineering project.
No. MAL is commonly used as a market term for this type of compact cylinder. The suitable SMC model depends on the required size and specifications.
Yes, share the bore, stroke and mounting details so the suitable SMC mini cylinder can be checked.
Make sure you have the necessary bore, stroke, mounting length and rod end type.
