A pneumatic cylinder on its own? It doesn't do much. Bench-test it with a straight air line and sure, it moves. Bolt it into an actual machine, though, and suddenly it needs a lot more around it.
Talk to any maintenance guy who's fitted a cylinder without the right hardware. The cylinder was never the hard part. Getting clean air to it, mounting it so it stays put, wiring in a sensor that actually works - that's the real job. Accessories are the bit nobody talks about until something rattles loose.
What Are Pneumatic Cylinder Accessories?
Simple version: Pneumatic Cylinder Accessories are whatever lets a cylinder actually work inside a machine. Brackets that hold it. Fittings that feed it air. Sensors that tell the control panel where the rod is right now.
Think of the cylinder as an engine, nothing more. Force, yes - but no wheels, no chassis, no steering. Accessories are that missing chassis. They're what turns raw push into motion you can actually rely on.
Common Pneumatic Cylinder Accessories
Not every job needs every accessory. But most working setups pull from this same short list:
| Accessory |
What It Does |
Selection Consideration |
| Mounting brackets |
Fixes the cylinder to the machine frame and carries the reaction load |
Match mount type to how the cylinder moves and how much space is available |
| Rod end attachments |
Connects the piston rod to the part being pushed, pulled, or lifted |
Choose based on alignment needs – fixed clevis vs pivoting joint |
| Pneumatic fittings |
Carries compressed air into and out of the cylinder ports |
Thread type and port size must match the cylinder exactly |
| Flow control valves |
Regulates the exhaust air to control piston speed |
Needed wherever sudden stops could damage parts or the load |
| Sensors / switches |
Reports piston position to the control system |
Match the sensor to a magnetic piston, if that's what you've got |
| FRL unit (filter-regulator-lubricator) |
Cleans, regulates, and lubricates the air supply |
Size it to the whole system's air draw, not the cylinder alone |
Get one of these wrong and something breaks down the line - a loose mount, a leaking joint, a cylinder that just won't survive the cycle count it's rated for.

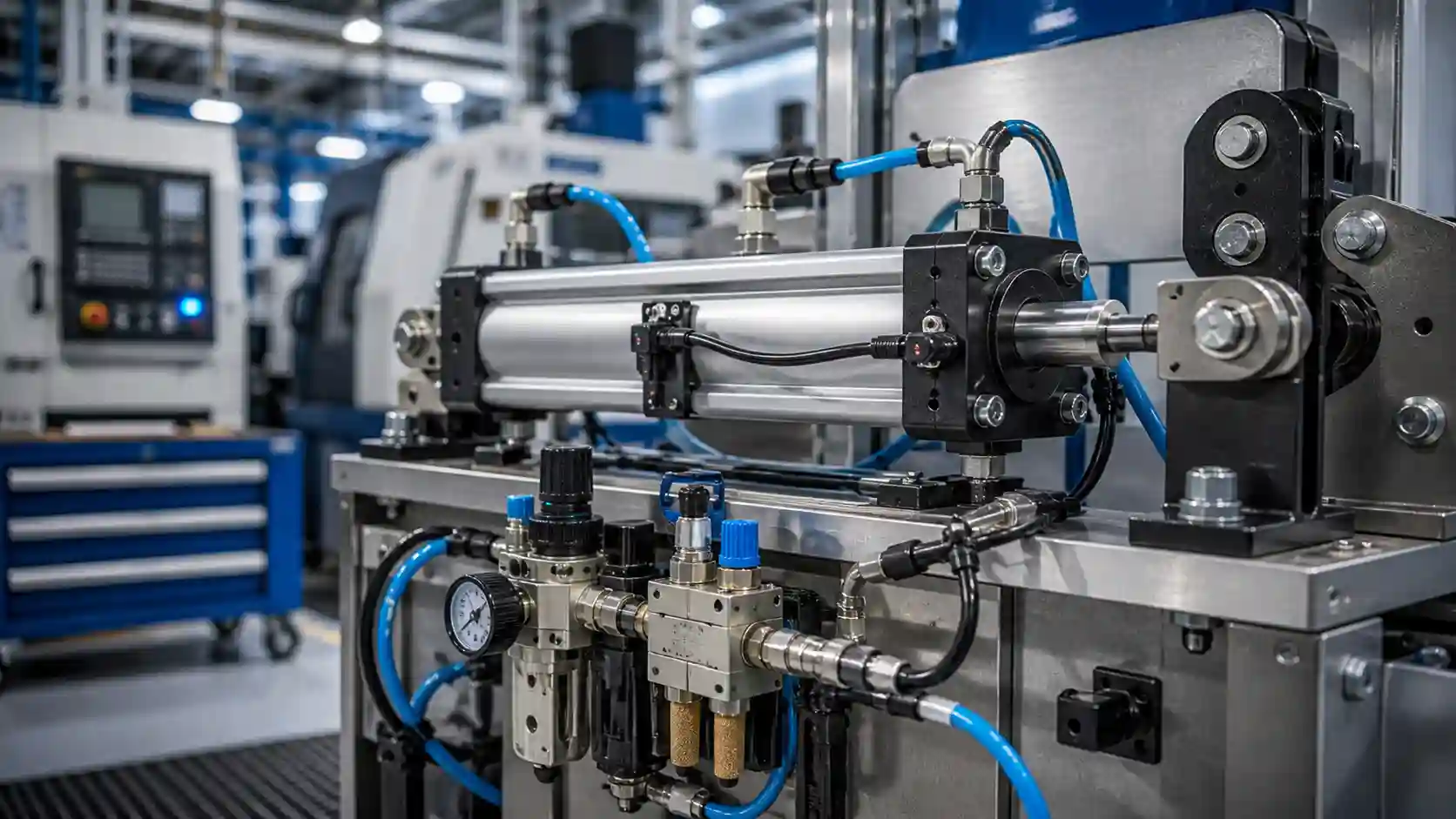

How Pneumatic Cylinder Accessories Complete a Pneumatic Cylinder System
A pneumatic system is basically a relay race. Air leaves the compressor, runs down the line, hits the cylinder, and that motion has to reach whatever part is doing the real work. Drop the baton anywhere, and the whole run slows down.
- Installation - the mount decides if the cylinder fits and stays aligned cycle after cycle.
- Air connection - wrong thread or port size means leaks and pressure drop.
- Movement - rod end attachments keep the force landing exactly where it should.
- Control - sensors tell the PLC when a stroke's done. No sensor, no feedback.
- Efficiency - clean air through a proper FRL unit, less wear, steadier cycles.
Picture a bottling line pushing cartons onto a belt. Skip the flow control valve and the rod snaps out full-speed - crushed cartons, a rattling bracket, a maintenance ticket by Friday. Add that one small part back, and it just runs.
Pneumatic Cylinder Accessories: Fittings vs Attachments
People mix these two up constantly — they're not the same thing.
- Pneumatic Cylinder Accessories fittings are air-side — connectors, elbows, hose barbs, anything managing how compressed air gets in and out. All about sealing and pressure.
- Pneumatic Cylinder Accessories attachments are mechanical — clevises, brackets, rod eyes. Decide how the cylinder physically bolts onto the machine and how motion transfers.
- You need both. Nail the fittings and the mount can still sit crooked. Nail the mount and the joint can still leak air. One doesn't cover for the other.
Quick Fact : Worn or mismatched fittings leak more air than people realize. Even a small leak, left alone, means the compressor runs longer and harder than it needs to - across an entire plant, that adds up fast.
Where Pneumatic Cylinders Get Used
Same handful of jobs, over and over, on almost any factory floor.
- Pushing a part off a die
- Pulling a guard back
- Holding a workpiece still while it's machined
- Nudging parts into position before the next step
- Shuttling material between stations
- That's Pneumatic Cylinders uses in a nutshell — packaging, automotive assembly, food processing, general automation, anywhere a machine needs a clean push or pull without dragging in hydraulics or servo motors
Pneumatic Cylinders for Lifting
Lighter jobs are where these really shine.
- Pneumatic Cylinders for lifting show up in setups like lift tables, small elevators, and platforms running up and down all shift
- Simpler than hydraulics, easier upkeep too
- Gravity's always in the equation, so check before picking one:
- Rated load capacity with real margin
- Guide rods against twisting
- Cushioning at both ends of stroke
- A steady air supply — a mid-lift pressure drop is bad news
Picking the Right Pneumatic Cylinder and Accessories
Don't pick the cylinder first and sort accessories later. Work through it together:
- Application - push, clamp, lift, or position? Changes everything.
- Bore size and stroke length - your force and travel numbers.
- Operating pressure, matched to supply and load.
- Mounting space, fitting threads, attachment type - clevis, rod eye, or trunnion.
- Environment - dust, moisture, heat rule out certain seals fast.
Compatibility trips up more buyers than raw specs do. A cylinder rated fine for the load, paired with the wrong fitting thread, causes more downtime than an undersized bore ever would.
Choosing the Right Manufacturer or Supplier
Spec's sorted. Next question - who's actually supplying it? Look at what's on the shelf, whether batches stay consistent, and if someone on the other end can walk you through a spec instead of reading off a part number. Buyers checking out Pneumatic Cylinder Accessories Manufacturers usually care about that last part more than they expected to. Plenty also search pneumatic cylinder manufacturers in india, or hunt for pneumatic cylinder suppliers closer to home - local sourcing usually means faster turnaround.
Why Choose VSP Pneumatic?
VSP Pneumatic stocks both Pneumatic Cylinders and the Pneumatic Cylinder Accessories that go with them - fittings, brackets, the works. No juggling three vendors to get one working setup.
Searching pneumatic cylinders near me for something local? Comparing Pneumatic Cylinder Accessories Suppliers in India? Need a pneumatic cylinder accessories trader in India who'll actually talk through the application first? VSP Pneumatic's team is there for that conversation - your requirement, your setup, the right combination for it.
About VS Enterprises
Established in 2013, VS Enterprises (V.S. Pneumatics) is a leading Manufacturer, Dealer, Supplier, Trader, and Retailer of pneumatic products and industrial automation in India. They have a vast product list that includes pneumatic cylinders, solenoid valves, air regulators, PU tubing, actuators, foot pedals, one-touch fittings, automation accessories, and more. Their offerings include customized products designed for long lasting performance with optimum efficiency and a minimum downtime. They have successfully cater to clients in automotive, food processing, packaging, construction, and manufacturing sectors, thereby gaining a strong foothold in the market through quality, customer satisfaction and quick nationwide deliveries.
FAQs
1. So what actually counts as a pneumatic cylinder accessory?
Ans: Anything that helps a cylinder mount, connect, or actually run - brackets, rod end attachments, fittings, flow control valves, sensors, FRL units. Skip these and a cylinder can still produce force, sure, but it can't be reliably installed, fed clean air, or controlled inside a real machine setup.
2. Are pneumatic fittings and attachments the same thing?
Ans: No, and mixing them up trips people up often. Fittings handle air-side connections - hoses, couplings, whatever manages airflow. Attachments are mechanical, think clevises and brackets, connecting the cylinder to the machine itself. A working setup needs both doing their job, not just one.
3. Do pneumatic cylinders work for lifting jobs?
Ans: They can, yes - workstation platforms, small elevators, that kind of lighter-duty lift. Just needs a bit more care in selection than a sideways push would. Rated load capacity, anti-rotation guides, end-of-stroke cushioning all matter more here, since gravity's constantly acting on the load.
4. How do I know which mounting accessory my cylinder needs?
Ans: Comes down to available space, force direction, and how much the cylinder needs to pivot. Foot mounts work for fixed installs, trunnion mounts allow pivoting, clevis mounts suit setups where alignment shifts mid-stroke. Match the mount to the motion and you'll avoid premature wear.
5. What should I check before choosing a supplier for cylinders and accessories?
Ans: Find one that stocks both the cylinder and matching accessories - keeps parts compatible from day one. Beyond that, check responsiveness on repeat orders, consistency across batches, and whether they'll actually discuss your application instead of just quoting part numbers off a list.
Conclusion
A cylinder is only as good as what's built around it. Fittings, mounts, sensors, air-line parts - strip any of it away and you've got an actuator, not a working system. Get the cylinder spec right, sure. Just don't leave the accessories for later - fold them into the same decision from day one, and you'll dodge most of the headaches that come from bolting things on after the fact
|
