The AM profile cylinder is a specific Mercury profile-body series. VS Enterprises supplies it from Noida, mainly as an exact replacement on machines already built with Mercury AM cylinders.

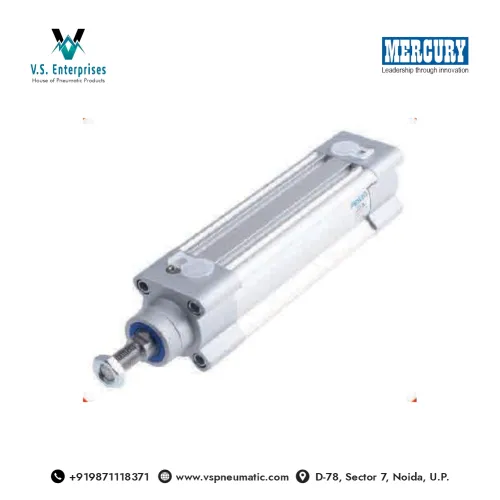

The AM profile cylinder follows the profile-body design: an aluminium barrel with a smooth outer profile and provision for position sensing. Because it is a Mercury series, buyers usually search for it by the "AM" code printed on the nameplate.
What sets the AM series apart: an extra-long guided piston with low-friction 'U' seals and an unbreakable rubber magnet built in for reed switch actuation, plus 'T' slots on all sides (up to Ø100) for easy, tool-free sensor mounting. The piston rod is centreless-ground and hard chrome-plated for a longer service life, and end covers are low-weight, pressure die-cast aluminium alloy rather than heavier cast options. Mounting threads follow the VDMA standard, so any mounting accessory — clevis foot, pivot flange, trunnion, rod eye, and more — bolts on without needing to dismantle the cylinder. A fine-control cushion screw with a lock also guards against accidental loosening during operation.
The full AM model code from the nameplate, or the bore, stroke, and mounting.
Figures come from the Mercury catalogue and are confirmed for your size at quotation.
|
Parameter |
Mercury AM Profile Cylinder |
|
Bore Sizes |
32, 40, 50, 63, 80, 100 mm |
|
Stroke Range |
25 to 250 mm standard stocked strokes for quick delivery; longer custom strokes on request |
|
Mountings |
Foot, front flange, rear flange, clevis, and trunnion |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
A few practical details to help you frame your next engineering project.
Both are round, compact cylinders; MAL refers to the aluminium-barrel design. Share your application and we will suggest the better fit.
No. The more forceful cylinders include the SC, tie rod, or ISO cylinder.
