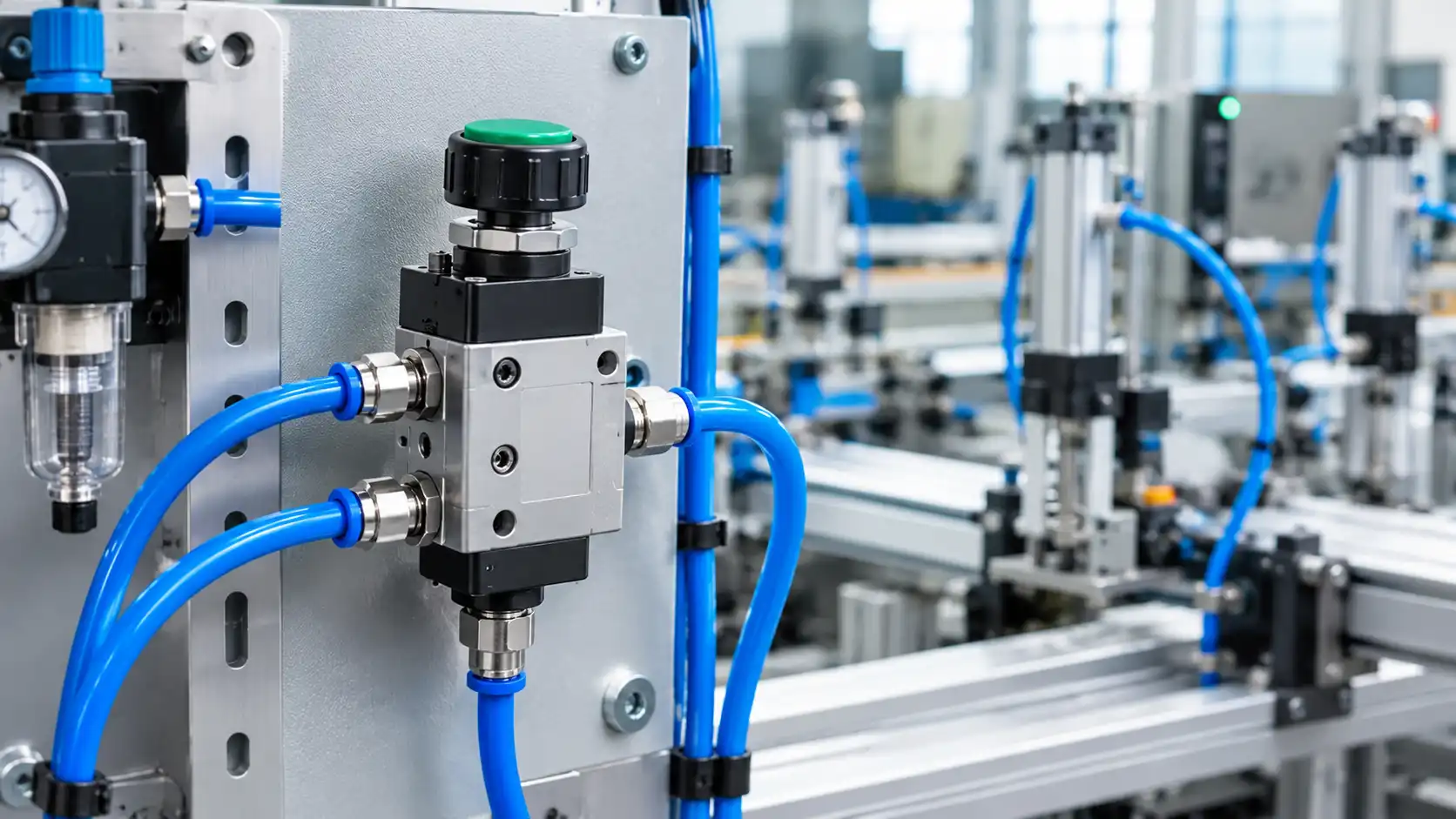

Pneumatic Push Button Valve: Types, Working, Applications & Buying Guide

Automation is great – but occasionally, you just need to tap a button and be done with it. No sensors, no controlling logic, no over-complication! Well, lucky for you, that's exactly what a pneumatic push button valve does – it's a no-nonsense solution to full manual control of an air stream in one simple press.

Where precision timing is more important than automation, a pneumatic push button is the answer to the complex. A pneumatic push button is the solution to the problem when precision timing is more important than automation. Hence, the push button valve is still considered to be the most reliable, easy to maintain and robust valve that has done its job successfully every single time and that's why industries still use it.

What Is a Pneumatic Push Button Valve?

In simple terms, a pneumatic push button valve is a manually operated valve that will direct the path of compressed air flowing in a pneumatic circuit. Press it and air flows just where it's supposed to flow. Just let it go and the flow halts or changes without the involvement of electronics or delays — mechanical logic.

It is the equivalent of the "on-off switch" for air-powered systems. The valve's internal spool or poppet mechanism is directed to an air push button, which pushes compressed air to the actuator, cylinder, or other pneumatic components.

A pneumatic valve push button is a control that is in the operator's hands as opposed to automated valves. It's ideal for situations where making decisions quickly and with your hands is more important than pre-programmed sequences, and is very simple, reliable, and yet refreshingly low-tech in a world of high-tech options.

How Does a Pneumatic Push Button Valve Work?

The magic of pneumatic push button working is simple, there's no coding, no calibration, no magic, it's just mechanical precision doing what it's supposed to do when you press down.

1. When the button is pushed, a plunger or spool in the button is moved to unseal a new air path, inside the valve body.
2. This action on the spool instantly changes the direction of the compressed air flow, which will go towards the connected actuator or cylinder and trigger motion.
3. A push button air valve will generally have a spring loaded return mechanism, therefore releasing the button will return the spool to normal automatically.
4. This resets the airflow switch off or airflow reverse, the actuator will not move until the reset button is pressed again.
5. This on-demand control can be used in a broader pneumatic valve push-button control application within a larger automation system to allow the operator to bypass or initiate a specific stage of the process without stopping the process flow.

Types of Pneumatic Push Button Valves

Not every push button valve will be created exactly the same: the types of pneumatic push button valve options available are created to suit various circuit requirements and control methods.

• 2-Way Push Button Valves: Control a single air path – Just ON/OFF, suitable for simple start or stop applications in simple pneumatic systems.
• 3-Way Push Button Valves: These valves direct air to one port and vent to the other for single acting cylinders, allowing for both extend and retract operations.
• 5-Way Push Button Valves: These valves are designed for double-acting cylinders, allowing them to control both air paths at one time for smoother and more controlled air back and forth movement.
• Momentary Push Button Valves: Air shut off when the button is released and will open again when the button is pushed again, perfect for short, single use applications.
• Push Button held valves (Maintained): They will remain open until they are pressed again, maintaining the air state when not subjected to constant manual pressure.

When selecting a pneumatic push button type, the cylinder type, response time, and actual amount of manual control required will determine the selection of the appropriate push button type.

Mechanical Push Button Valve

Mechanical push button valves are operated by mechanical pressure without air or electricity activation. Rugged and spring return, it is well suited for demanding factory floors where reliability trumps fancy features. This push-button valve style is still in use in production lines where operators are required to have a direct ‘haptic' response to every push, for example in packaging lines, assembly stations and safety critical applications where manual operation is essential.

Air Push Button Valve

An air push button valve is a type of valve that requires less application effort and is smoother because it shifts the valve's spool using the pressure of pilot air rather than the direct application force. This air valve push button design is suitable for remote and panel mounted control applications where operators must operate machinery from a remote location. Ideal for automated lines which require manual override but where heavy mechanical linkages between the button and the valve body are not suitable.

Pneumatic Push Button Valve with Different Port Configurations

Any change to the port configuration alters the function of a pneumatic push button valve in a circuit. Single-acting cylinders can be controlled by a 3/2 way version, which has one inlet, one outlet, and one exhaust port — ideal for simple on/off operations. A 5/2 way push button valve pneumatic system, meanwhile, supports double-acting cylinders, controlling both working ports at the same time, allowing for smoother directional control for more complex automation sequences for industrial applications.

Key Features and Benefits of Pneumatic Push Button Valves

The true value behind the pneumatic push button valve benefits is the amount of value these small parts contribute to everyday industry operations.

• Durable construction: Valves are designed to be robust and can be made from bronze or stainless steel, which ensures they can withstand the stress of frequent use.
• Fast turnaround: Air flow changes near instant after pressing the button, to prevent production line slowdowns.
• Easy threading: This pneumatic valve is easy to be threaded and compact to fit in size into any existing setup.
• Direct control of the air direction, no guess work: The operators have direct control of the air direction which is very advantageous when using precision is important.
• Reliable operation: Relatively few moving parts mean this is less likely to fail in continuous industrial usage or in extreme conditions.

Applications of Pneumatic Push Button Valves in Industries

Pneumatic push button applications can be seen virtually anywhere pneumatic machinery is doing heavy lifting, from large manufacturing floors to small control panels.

• Automation machinery: These are pieces of equipment that are manually used to activate certain automated sequences and to override cycles if necessary.
• Packaging machines: Quickly and precisely sealing, cutting and pushing actions.
• Assembly lines: Allows the operator to switch on clamps, actuators and fixtures for hand assembly operations.
• Warehouse crane: Operates lifting, sorting and conveyor-stop tasks in the warehouse and production unit.
• Automotive manufacturing: Assists in the production of pneumatic tools and jigs for producing and testing vehicles.
• Control panels: Provides a manual command point in larger industrial pneumatic valve systems for convenient operator access to key functions.

Pneumatic Push Button Valve vs SMC Push Button Valve: Understanding the Difference

Choosing between a branded and generic option isn't always straightforward — here's a quick side-by-side to help you understand where each one fits best.

A pneumatic push button valve works great for everyday industrial needs, while an SMC push button valve suits operations demanding tighter tolerances and certified reliability.

Factors to Consider Before Buying a Pneumatic Push Button Valve

With a little help from this pneumatic push button valve buying guide you can avoid adding a headache to a simple task: selecting the wrong valve.

• Valve type: Be sure to know your cylinder configuration before deciding on 2, 3, or 5.
• Actual operating pressure: Not the "average" pressure – is important, otherwise you'll get leaks that nobody wants.
• Port size: If you get this wrong, you will find that you have fittings that don't get along with the lines you currently have.
• Material quality: Brass and stainless steel handle wear in different ways; choose accordingly to your shop floor.
• Supplier reliability: Communicate with a pneumatic valve supplier that responds to calls, and has stock on hand, rather than a supplier who calls after the sale.

Why Choose a Reliable Pneumatic Push Button Valve Manufacturer?

Not all valves are created equal, and that's where trusted pneumatic push button valve manufacturers come in handy. Reliable partners are distinguished from one-time sellers by their quality manufacturing, their rigorous testing of products, and their quick technical support.

Each valve at V.S Enterprises is subjected to rigorous quality control prior to ever arriving at your production line. With their reliability as one of the most reliable pneumatic valve manufacturers in the industry, V.S Enterprises also provides customized pneumatic solutions and stock availability, ensuring you're not caught short when your operations can't afford downtime.

Selecting the Right Pneumatic Push Button Valve for Your Application

After all, a pneumatic push button valve is straightforward, robust, and efficient. The selection of the pneumatic push button depends on the type, pressure, and material requirements.

FAQs

1. What is a pneumatic push button valve?

It's a manually operated valve that controls compressed air direction inside pneumatic circuits. Pressing the button shifts internal air flow, activating connected actuators or cylinders instantly.

2. How does a push button valve work?

Pressing the button moves an internal spool, redirecting airflow. Releasing it triggers a spring-return mechanism, resetting the valve back to its original position automatically.

3. What are the common types available?

Common types include 2-way, 3-way, and 5-way push button valves. Each type suits different cylinder configurations, from simple on-off tasks to double-acting circuits.

4. Where are these valves commonly used?

They're widely used in packaging machines, assembly lines, material handling systems, automotive manufacturing, and control panels needing quick, manual pneumatic control.

5. How is it different from an SMC push button valve?

SMC is a branded product line known for precision engineering. Generic pneumatic push button valves offer more flexibility, customization, and budget-friendly pricing options.

6. What should I check before buying one?

Consider valve type, pressure rating, port size, material quality, and operating environment. Choosing a reliable supplier also ensures better long-term performance and support.
