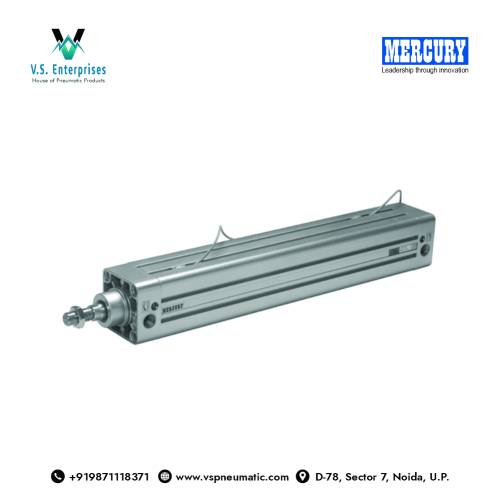

Need a cylinder that looks as good as it performs? VS Enterprises supplies Mercury profile cylinders from Noida to OEMs who want a clean, compact look with easy sensor mounting built right into their machines.
A profile cylinder uses an extruded aluminium barrel with the tie rods hidden inside the profile itself. The outer surface carries slots for mounting position sensors directly on the body — no external brackets needed. The result: a smooth cylinder that's easy to clean and neat to install, ideal wherever appearance and hygiene matter as much as function.
Special-purpose machines, food and pharma equipment where cleaning matters, automation cells with many position sensors, and machines exported to customers who expect a modern look.
To get you the exact match quickly, just share:
Figures come from the Mercury catalogue and are confirmed for your size at quotation.
|
Parameter |
Mercury Profile Cylinder |
|
Bore Sizes |
32, 40, 50, 63, 80, 100, 125, 160, 200 mm |
|
Stroke Range |
20 to 2,000 mm |
|
Operating Pressure |
Up to 10 bar |
|
Sensor Slots |
T-slot for magnetic reed/proximity sensors |
|
Mountings |
Foot, flange, clevis, and trunnion mounting |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
A few practical details to help you frame your next engineering project.
Cleaner shape, built-in sensor slots, fewer external parts to trap dirt — that's the trade-off.
Share the cylinder model with us; we'll tell you which sensors fit.
Not as easily. Since the tie rods sit inside the profile, servicing usually needs the barrel removed rather than simple end-cap disassembly. For quick field repairs, a tie rod cylinder is the better fit.
