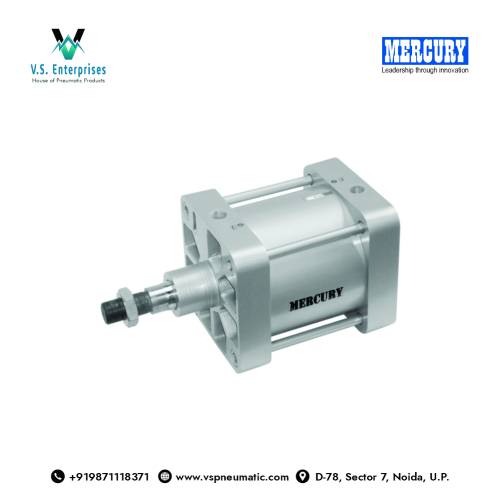

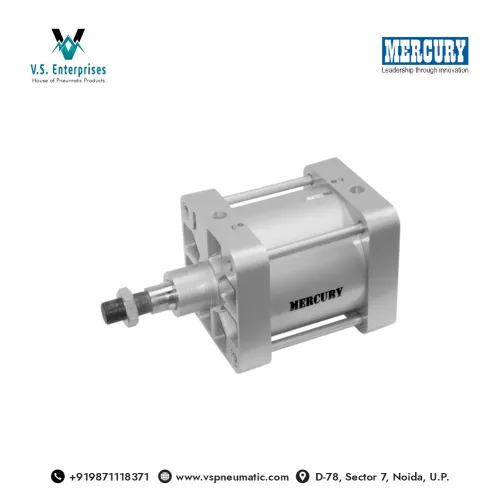

Looking for a reliable tie rod cylinder for your production line or machine build? VS Enterprises supplies genuine Mercury tie rod cylinders from Noida, with GST-billed invoicing and pan-India dispatch. Whether you're a machine builder specifying components for a new line or a maintenance team keeping an old machine running, our tie rod cylinders deliver the rugged, serviceable performance industrial pneumatics is known for — available across a wide range of bore and stroke combinations to match almost any application.
A tie rod cylinder is built with its front and rear end caps clamped against the barrel by steel tie rods running along the outside. This simple, external construction means the cylinder can be opened by loosening the rods — no special tooling, no scrapping the whole unit. Worn seals and pistons get replaced right on-site, which is exactly why tie rod cylinders remain the first choice for machines running long, continuous shifts where downtime is expensive.
Presses and fixtures, material handling systems, woodworking machines, textile machinery — anywhere high force output needs to pair with straightforward, low-cost maintenance.
To get you the exact match quickly, just share:
Tip: In most cases, a clear photo of the old cylinder's nameplate is all we need to match the exact specification — no guesswork.
Figures come from the Mercury catalogue and are confirmed for your size at quotation.
|
Parameter |
Mercury Tie Rod Cylinder |
|
Bore Sizes |
32, 40, 50, 63, 80, 100 mm |
|
Stroke Range |
Up to 2,000 mm |
|
Operating Pressure |
0.5–10 bar |
|
Action |
Double acting; single-ended rod standard, double-ended rod available |
|
Mountings |
Foot, flange, clevis, trunnion |
|
Cushioning / Magnet |
Both-end cushioning; TM = magnetic, T = non-magnetic |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
A few practical details to help you frame your next engineering project.
Yes. Its tie rod design allows easy replacement of seals and pistons. Contact us for the matching seal kit for your bore size.
In the case of the tie rod cylinder, there are visible tie rods externally, and it can be easily serviced in the field. However, the profile cylinder has a neat aluminum body and comes with inbuilt sensor slots. It has a more compact design.
Yes, we deliver from Noida to all states in India with GST invoice in each transaction.
