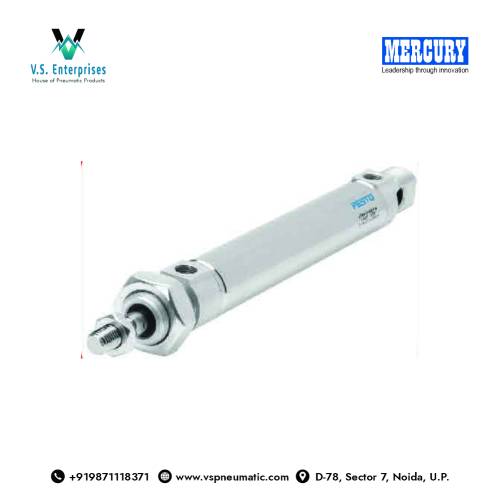

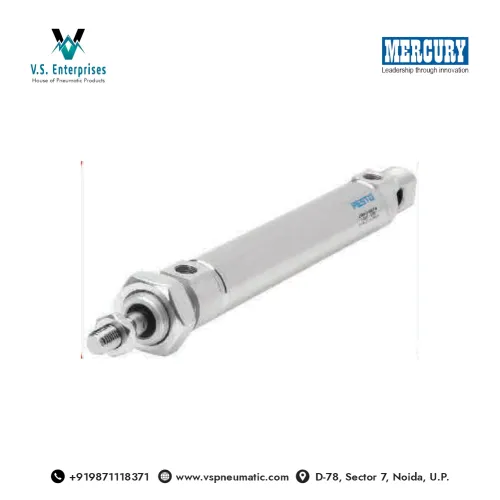

VS Enterprises supplies Mercury round body cylinders from Noida for machines that need small, economical cylinders with simple mounting.
A round body cylinder has a one-piece round barrel with crimped or threaded end caps. Small round cylinders are often built to ISO 6432, which covers bores from 8 to 25 mm. They are low-cost and easy to mount through a nose nut or pivot.
Light pushing and clamping, door and gate actuation on machines, small feeders and ejectors.
Bore, stroke, and whether you need a nose-mount, pivot or foot bracket.
Figures come from the Mercury catalogue and are confirmed for your size at quotation.
|
Parameter |
Mercury Round Body Cylinder |
|---|---|
|
Bore Sizes |
12, 16, 20, 25 mm |
|
Stroke Range |
10 to 1,000 mm |
|
Operating Pressure |
0.5 to 10 bar |
|
Standard |
ISO 6432 compliant |
Need a different price point or the brand your machine was built with? These pages cover the same product type.
A few practical details to help you frame your next engineering project.
Many round body cylinders are non-repairable and are replaced as a unit. Ask us about your model.
Small bores are most common. Share your force requirement and we will suggest a size.
