5/2 Solenoid Valve Explained: How It Works & Where to Use It

What if a simple valve could boost your machine’s performance? Imagine a pneumatic or hydraulic system working like clockwork. Well, 5/2 solenoid valve make this happen. If you’ve ever worked with pneumatic system or hydraulic system you have seen the automation of pneumatic system and It does with direction control valve. A solenoid valve is a electro-mechanical valve that used to control the flow of liquid using an electric coil. When electricity is conducted through the coil, it create a magnetic field which move diapham up or down also called open and close. In this blog we will discuss what 5/2 control valves, their benefits, industrial applications, and how do they operate, etc.

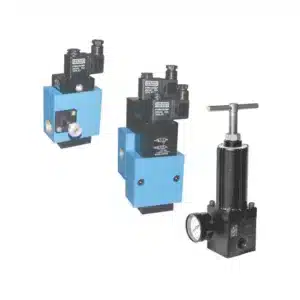

What is a 5/2 Solenoid Valve?

Defining the 5/2 Configuration

A 5/2 solenoid valves is a valve which have 5 connection points (ports) for air fluid and have 2 switching positions that allow it two direct the air flow in two different directions. A 5/2 control valve is used to direct the airflow in pneumatic system which help acting cylinder to move forward and backward through air passed by 5/2 control valves. When electricity is conducted through the coil, it create a magnetic field which move diapham up or down also called open and close.

Common Applications

  • Pneumatic cylinder control
  • Industrial automation
  • Robotics
  • Fluid control systems

How a 5/2 Solenoid Valve Works

5/2 solenoid valve is a directional control valve used in pneumatic systems to direct the flow of compressed air, controlling the movement of double-acting cylinders. It has total five ports and operates in two positions, switching airflow between two different output paths. When the valve is in its initial stage (de-energized state):

  • Compressed air enters through the supply port (P) and flows to output port (A).
  • Output port (B) is blocked.
  • Air from the previous stroke is exhausted through exhaust port (E2).

Ports Connection in Position 1:

✔ Connected: P → A, B → E2 ❌ Blocked: P → B Impact on the Actuator: This configuration elevate the double-acting cylinder by sending compressed air to one side.

Transition: Solenoid Activation & Shifting

When an electrical signal energizes the solenoid coil:

  1. The solenoid creates a magnetic field, pulling or pushing a spool inside the valve body.
  2. The spool then shifts, changing the internal passageways and redirecting airflow.
  3. New airflow paths are created by switching the valve to Position 2.

Position 2: Reordered Airflow

After the solenoid is energized and the spool shifts:

  • Compressed air now flows from the supply port (P) to output port (B).
  • Output port (A) is blocked.
  • Air from port (A) is released through exhaust port (E1).

Ports Connection in Position 2:

✔ Connected: P → B, A → E1 ❌ Blocked: P → A Impact on the Actuator: This configuration retracts the double-acting cylinder by changing air to the opposite side.

Cycle Repeats for Continuous Operation

By continuously switching between Position 1 and Position 2, the 5/2 solenoid valve enables precise bi-directional movement in pneumatic actuators.

Key Advantages of Using 5/2 Solenoid Valves

5/2 solenoid valves is vital for pneumatic system as it offers accurate control, sturdiness, and dynamic features across various different industry. Following are the key benefits of using these valves:

Precise Control and Automation

5/2 solenoid valves elevate the efficiency of the pneumatic systems by ensuring precise movement of double-acting cylinders switching between extension and retraction.

  • Reduce cycle time by 30% in automation systems.
  • Reduces errors while working upto 25%, increasing overall consistency.
  • Improves energy efficiency and reducing wastage of compressed airs.

By automating motion control, industries gain higher productivity with minimal manual intervention.

Durable and Reliable

These valves are manufactured to withstand millions of cycles under demanding conditions, ensuring long-term usage with minimal maintenance.

  • High-quality materials (Manufactured from material like stainless steel, brass, or aluminum) resist corrosion. Packed design to prevents air leaks and contamination. constant operation even in harsh environments.

Versatility in Applications

5/2 solenoid valves are highly dyanamic which make them compatible for a wide range of industries:

  • Food Processing – Used in packaging and filling machines.
  • Automotive – Controls pneumatic brakes and robotic assembly lines.
  • Manufacturing & Packaging – Powers conveyor systems and automated machinery.

Controlled exhaust in both directions

  • High-speed applications: Commonly used in high-speed applications, such as packaging industries, sorting systems, etc. A 5/2 solenoid valves with different exhaust paths allows for quicker air pressure exhaust and results in faster actuation time.
  • Precision applications: In industries which requires precise movement i.e., robotics & precision machinery, different exhaust paths can provide better control of the actuation speed.

Their capability to operate with different pressure levels, voltages, and mounting styles makes them a Preferred option for industrial automation.

Conclusion

5/2 solenoid or control valve is a crucial component in a Pneumatic system, providing accurate movement, sturdiness, and versatility. By precisely moving airflow to double-acting cylinders, these valves ensure smooth and accurate movement, reducing downtime of each cycle and elevating overall system performance. This are dependable, used in various industrial applications, and are compatible to handle high-speed precision task makes them top pick for automation across multiple sectors. This valves is key component in optimizing pneumatic systems. For example: Manufacturing, robotics, automotive, or food processing industries. With the growing technology and demand for high-performance pneumatic systems industries are more frequently adopting 5/2 solenoid valves for advanced automation. Selecting the best solenoid valve or right 5/2 control valve will help you efficiently optimize your operation but it is also a cost-effective option.
