peed, reliability, and ease of product installation are important in modern pneumatic sectors. One-touch push fittings come into play at this point. They are specifically designed for prompt tube connections, eliminating the need to use tools. They are used in various industries, including automation, manufacturing, packaging, etc.
In the following blog, we will talk about the product’s types, sizes, configurations, applications, advantages, and selecting the correct one. Let us now proceed.
What Are One-Touch Push Fittings?
The product is a mechanical one-touch connector that allows the tubes to be inserted and removed very quickly. It is also known as One-Touch Push Fittings. This is done by pushing them into the fitting . The tube is pushed into the fitting. There is an internal collet that securely holds the tubes. Apart from the collet, there is an O-ring present that ensures an airtight seal. They are used in pneumatic systems where there is a need for assembly and disassembly of products.
Key Advantages of One-Touch Push Fittings
One-Touch Push Fittings are extremely helpful in industrial operations. Some of its advantages are as follows:
- Very quick installation
- Sealing that remains secured at all times
- Small design
These make them a perfect choice for high-demand working environments.

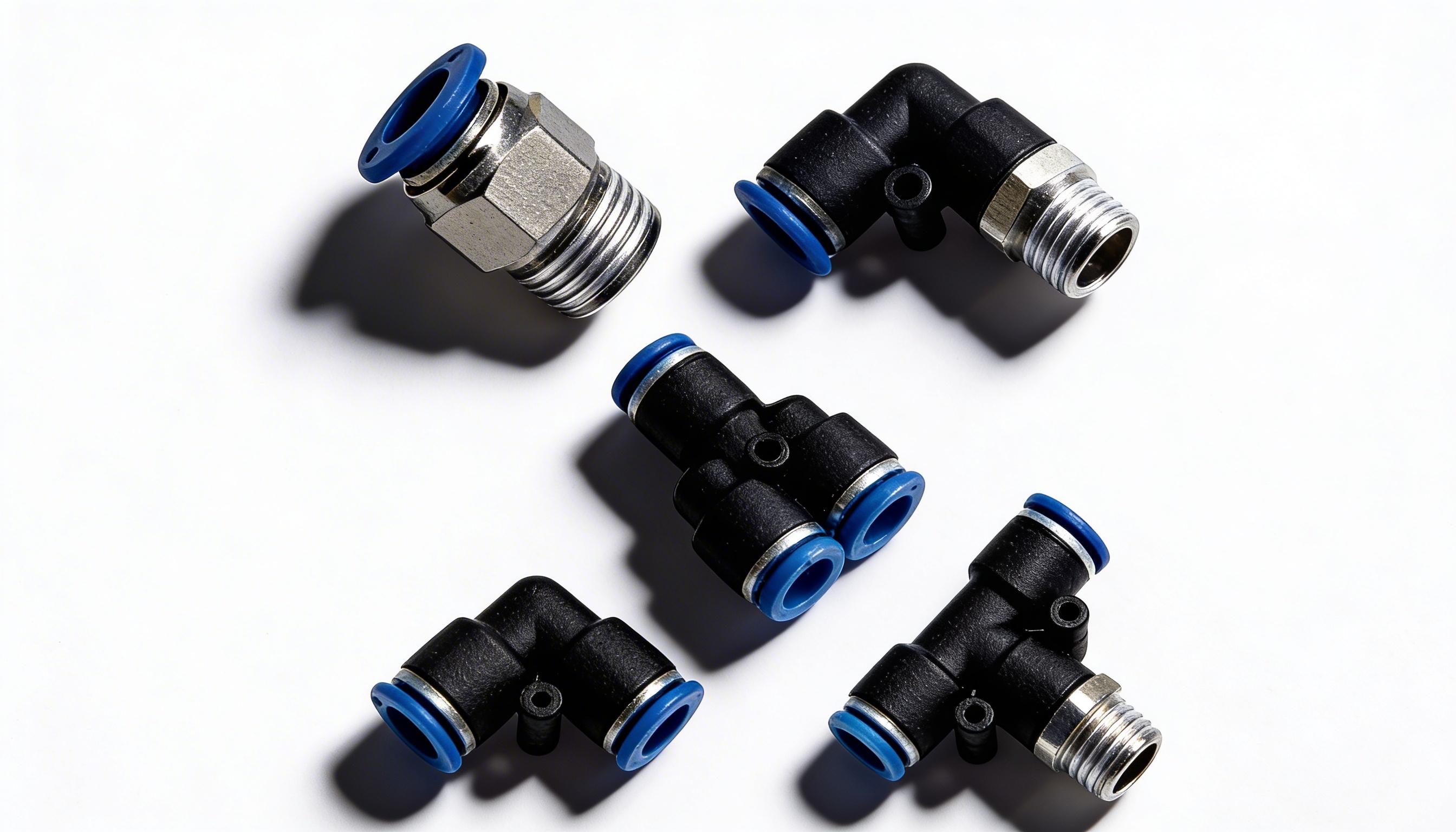

What Are the Types of One-Touch Push Fittings?
One-Touch Push Fittings are available in various types. Let us have a look:
| Fitting Type |
Description |
Typical Use |
| Straight Fitting |
Direct inline connection |
Simple tube routing |
| Elbow Fitting |
90° direction change |
Space-constrained layouts |
| Tee Fitting |
One inlet, two outlets |
Flow distribution |
| Y Fitting |
Angled branching |
Smooth flow splitting |
| Union Fitting |
Tube-to-tube connection |
Line extensions |
| Bulkhead Fitting |
Panel-mounted connection |
Control panels |
Each type supports efficient air or fluid routing while maintaining system integrity.
One Touch Push Fitting Sizes
Choosing the correct product size is important for proper sealing. Push fittings are typically sized based on:
- Outer diameter (OD) of the tube
- Thread size for port connection
Common Tube Sizes
- 4 mm
- 6 mm
- 8 mm
- 10 mm
- 12 mm
- 14 mm
Common Thread Standards
- Metric threads (M5, M6, M8, M10, M12)
- BSP (British Standard Pipe)
- NPT (National Pipe Thread)
Using the correct size prevents leakage, tube damage, and pressure loss.
One Touch Fitting Male and Female Configurations
One Touch Fitting Male
A one-touch fitting male is used for connecting equipment directly. It comprises of a thread that is present externally.
Advantages:
- Installing them is extremely easy.
- Their threads connection is secure.
- They are an excellent choice for small assemblies.
One Touch Fitting Female
A one-touch fitting female has threads (placed internally). They are used with adapters.
Advantages:
- They offer greater flexibility.
- They are ideal for retrofit applications
- They are compatible with adapters
Which Materials Are Used in One-Touch Push Fittings?
Here are some of the materials one-touch push fittings are made of:
- Brass—They have a high strength and are resistant to corrosion.
- Nickel-plated brass—Nickel is known for enhancing durability
- Stainless steel—Stainless steel, being sturdy, is ideal for demanding environments.
- Plastics—It is lightweight and economical.
You should choose the ones that best suit your industrial operations.
Applications of One-Touch Push Fittings
These push fittings are commonly used in the following sectors:
In pneumatic automation, the push fittings are used in air cylinders, solenoid valves, and control panels.
-
Packaging and Printing Machines
In packaging solutions, the push fittings are used to enable quick assembly and frequent line modifications.
-
Food and Beverage Industry
The push fittings are used in food-grade tubing for clean air and fluid transfer.
The product supports compact, lightweight pneumatic circuits.
-
Medical and Laboratory Equipment
In medical sectors, the product is used to provide clean and secure connections.
Which Factors Should Be Considered When Choosing One-Touch Push Fittings?
You should consider the following:
Keep in mind that the operating pressure of the product should meet your industrial operations.
Tube Material Compatibility
Ensure compatibility with materials like nylon, PU, polyethylene, or PTFE tubes.
Metal fittings are appropriate for tasks with high temperatures.
The thread type should be matched to avoid leakage.
Always consider environmental conditions like dust, moisture, chemicals, etc.
What Common Mistakes Should Be Avoided When Investing in One-Touch Push Fittings?
- Using tubes with incorrect sizes
- Using threads that are incompatible
- Using connections that are overly tight
- Not paying attention to the pressure ratings
- Using reused tubes
FAQs on One-Touch Push Fittings
1. What are one-touch push fittings mainly used for?
They are primarily used for quick and leak-proof tube connections in pneumatic and fluid systems.
2. Are one-touch push fittings reusable?
Yes, they can be reused if the tube and fitting are in good condition.
3. How do I identify the correct one touch push fitting size?
Measure the outer diameter of the tube and match it with the fitting’s size specification.
4. What is the difference between one touch fitting male and female?
Male fittings have external threads, while female fittings have internal threads.
5. Can one-touch push fittings handle high pressure?
Yes, provided they are selected according to the rated pressure and material specifications.
Conclusion
One-touch push fittings provide speed and reliability and are available in various types and designs. They are used for simple as well as complex tasks like for automated systems. Before investing in them, you must understand your requirement.
